From the Garage Files: Steve Halabura is one of Saskatchewan’s leading geologists

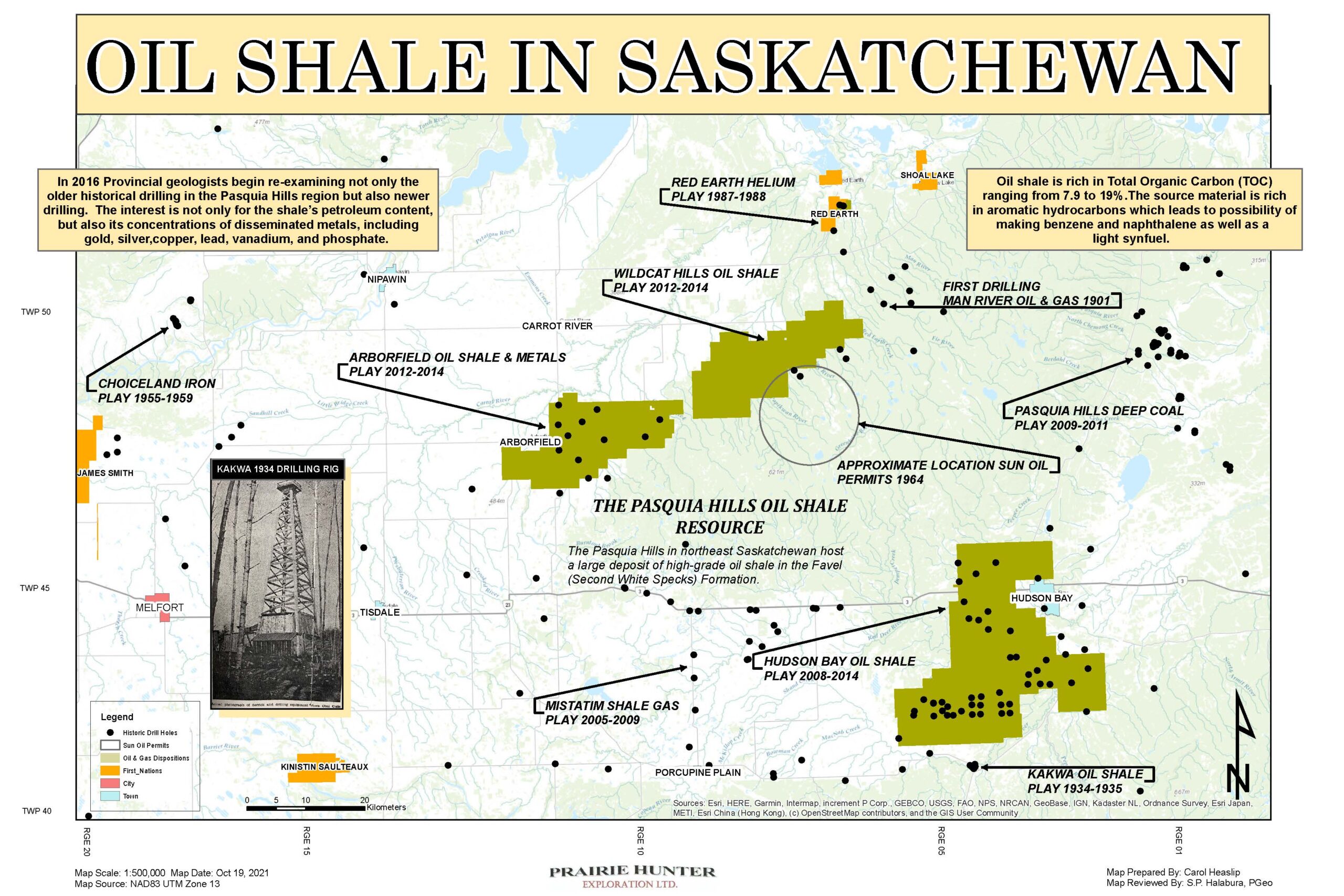

Map by Carol Heaslip, reviewed by Steve Halabura
Its hard to believe that there is such a thing as the “Northeast Saskatchewan Oilpatch” but in a strange way, there is such a place. Instead of Estevan, think Hudson Bay. Weyburn – think Arborfield. Heck, the area even has coal!
This is not normally an area familiar to the denizens of Saskatchewan’s more conventional “patch,” so Carol Heaslip threw together a map for me showing the geography and the “hot” zones. First, get yourself to Saskatoon, then progress on Highway 41 about 150 kilometres to the northeast to Melfort. From here, its about another hour and a half east to Hudson Bay, and along the route you will see the main geographic feature of the northeast – the Pasquia Hills.
This is a surprisingly rugged and remote part of the province. I’ve circumnavigated the hills but have never had the nerve to plunge deep into the heart of Pasquia country.

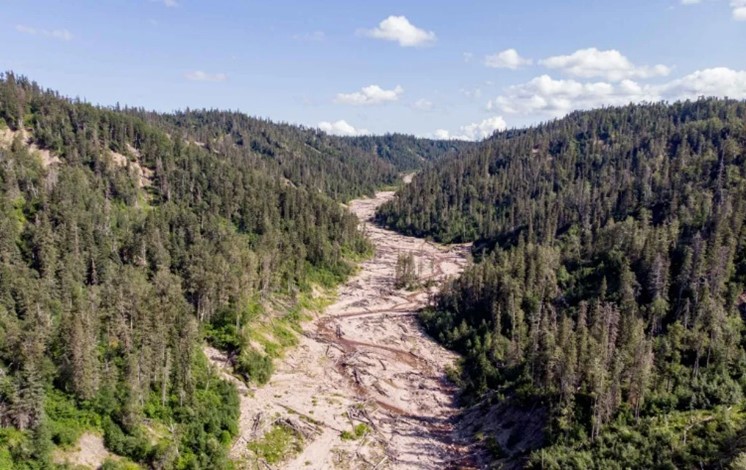

from The Lostgirlsguide.com, Rice River Canyon
But this has not deterred others.

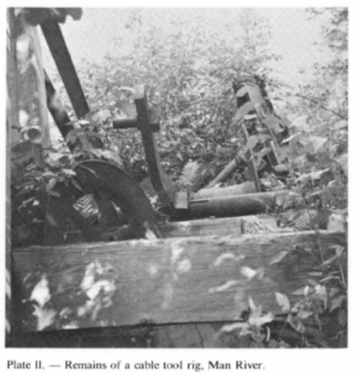

from Beck, L.S. 1974, “Geological Investigations in the Pasquia Hills Area”, Department of Mineral Resources Saskatchewan Geological Survey Report 158
The first report of oily rock was made by William MacInnes in 1913, who reported on the occurrence of petroleum rock capable of yielding “Seven gallons of crude oil and 22.5 pounds of ammonium sulfate per ton.” Subsequent work by geologist S.C. Ells reported between 3.1 and 12.8 gallons of crude oil and between 1.7 to 8.7 pounds ammonium sulfate per ton from the same sequence of black shales, now identified as being of Cretaceous age. It seems (as is often the case) that entrepreneurs beat the scientists to this conclusion, as there may have been a cable tool well drilled on the north flank of the Hills as early as 1901.
from Halabura, S. P., the “Garage Files”)
Then, a big strike! Oil discovered out in the boondocks of Saskatchewan! Book a rig and let’s get drilling!

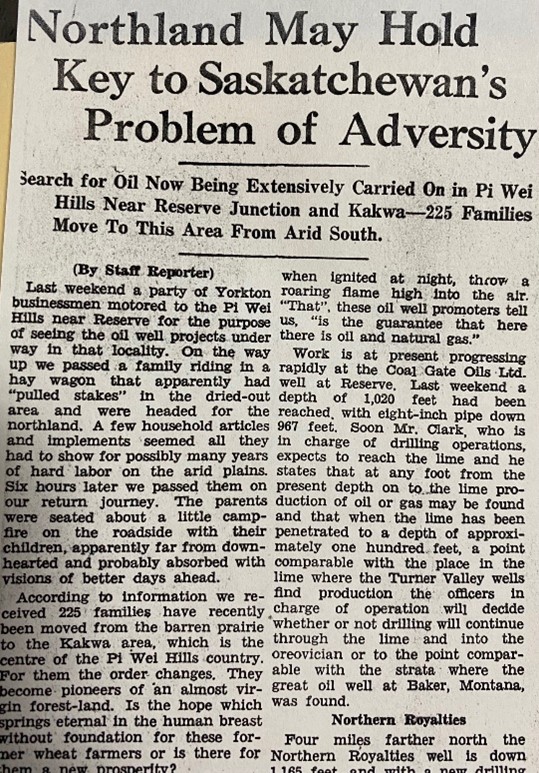

About a decade after Ell’s report, oil fever broke out in Regina and Yorkton, thanks to a report of black oil found in drillholes south of the Hudson Bay Junction, in an area variously known as “Kakwa” or “Pi Wei.” The driller was the Trail Blazer Oil and Gas Company of Regina, on a lease of 2,240 acres.
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001

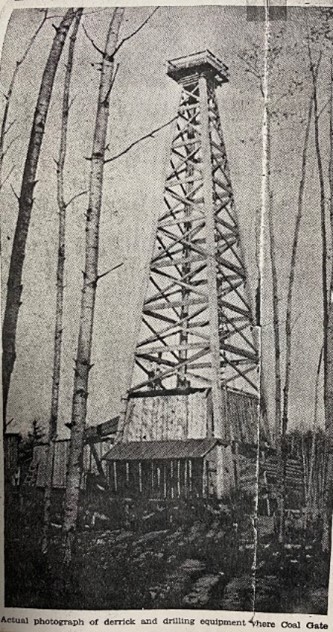

Others active in the embryonic Saskatchewan oilpatch, such as Coal Gate Oils and the Petroleum Engineering Company, were also drilling, with various reports of flowing gas and free oil recovery. Wells were drilled, shares were sold, leases were traded, but in the end, the gas watered out and the oil was deemed no better than “the end product of heavy oil from which all the lighter products have evaporated,” much like the dreams of the early explorers.
from Halabura, S. P., the “Garage Files”)
Thirty years later: reports circulate of trucks and heavy equipment leaving drill sites deep in the Pasquia Hills, the truck wheels coated in oily mud. The explorer, Sun Oil, was tight-lipped; however, by now general knowledge attributed the target beds as being the same oil rocks as described by MacInnes and Ells, but now geologized to be the Second White Specks, or if you are from Manitoba, the Favel Formation. Sun’s drilling was along the north flank of the hills, with permits located deeper into the central part of the hills. Sun determined average yield of 8 gallons per ton over a thickness of 100 feet, leading to a calculation of 2.6 billion barrels of crude oil in place. Unfortunately, the technology was not yet available to economically exploit the discovery.
Interest in the oil shale potential revived in the early 2000s, with junior resource companies like Nordic Oil and Gas, Questerre, Goldnev, and Canshale, taking land and undertaking exploration work. Early results were substantial: Goldnev reported an “excellent high oil yield of 61 liters (13.4 Imperial gallons) per tonne of rock,” based on TOC (Total Organic Carbon) of 9.1 to 10 per cent. Free-flowing oil too: Nordic was on the hunt for oil out of Lower Paleozoic rocks (another story) and reported a significant oil zone within the Lower Paleozoic. Other companies focused on Second White Specks gas and deep Mannville sub-bituminous coal.

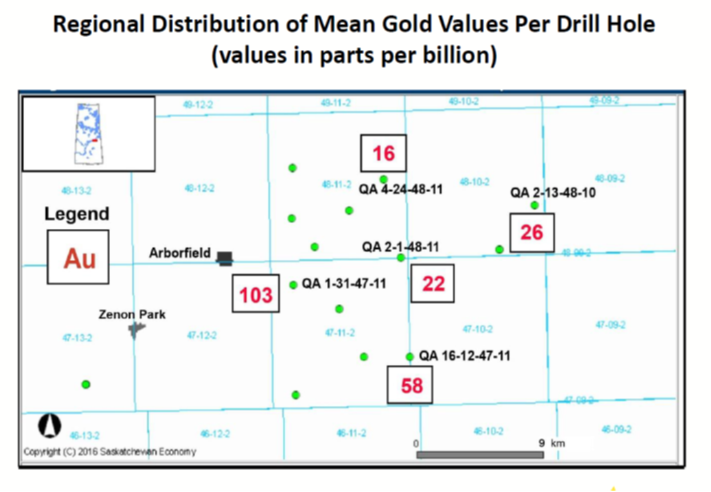

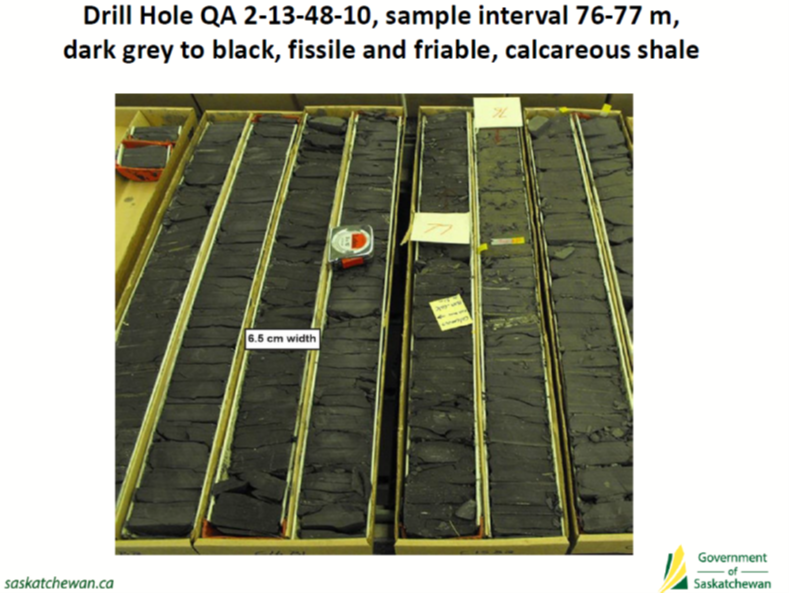

In 2016 geologists of the Saskatchewan Geological Survey provided yet another tantalizing play concept. In their re-examination of the historical drilling in the general Pasquia Hills region, they announced a startling conclusion: the oil shales contain rich concentrations of disseminated metals, including gold, silver, copper, lead, vanadium, and phosphate.
from Rogers, M. C., 2016, A lithogeochemical study of the metal contents of the Upper Cretaceous oil shales in the Pasquia Hills, east-central Saskatchewan; Saskatchewan Geological Survey, Sask. Ministry of the Economy, In Summary of Investigations 2016, Volume 2, Miscellaneous Report 2016-4.2, Paper A-1
from Rogers, M. C., 2016, A lithogeochemical study of the metal contents of the Upper Cretaceous oil shales in the Pasquia Hills, east-central Saskatchewan; Saskatchewan Geological Survey, Sask. Ministry of the Economy, In Summary of Investigations 2016, Volume 2, Miscellaneous Report 2016-4.2, Paper A-1
Here we are today: after 120 years, the “Northeast Patch” is still awaiting the first barrel of oil; however, we may be on the cusp of seeing one or more projects cross from being a field of dreams to seeing shovels digging. The “Northeast Patch” will look a bit different that the southeast, or other producing areas. It may also produce more than an artificially made light oil stream, but it may also produce as side streams gold, silver, and other metals.
Hudson Bay, Arborfield? You bet! It might be worthwhile to make another road trip out there before snow flies!
Steve Halabura is a professional geologist whose work over the years includes potash, oil, natural gas and helium. He can be found on LinkedIn at https://www.linkedin.com/in/steve-halabura-a715461b/
Editor’s note: Check out related pieces on oil shale:
And referenced in Halabura’s column, Questerre Energy.
