Brian Zinchuk is editor and owner of Pipeline Online
CORRECTION: This story initially reported that Alberta has 736 megawatts of solar power installed. The Travers facility is listed by the Alberta Electric System Operator, but Travers in fact is not actually operational yet as it is under construction. So the total of Alberta’s installed solar capacity is 336 megawatts, meaning the total of wind and solar’s installed base is 2,605 megawatts, not 3,005 megawatts, as initially reported. Calculations in this story have been updated on Feb. 2, 2022, to reflect that.
It turns out that in addition to getting cold in Alberta, it can also get cloudy. And when it does, as it did on Jan. 13, even the noon hour doesn’t produce much solar power in mid-January.
You can find this information updated every minute from the Alberta Electric System Operator at http://ets.aeso.ca/ets_web/ip/Market/Reports/CSDReportServlet. SaskPower does not provide anywhere close to this level of detail to the public. Instead, its website offers a singular number – the current system load, at https://www.saskpower.com/Our-Power-Future/Our-Electricity/Electrical-System/System-Map.

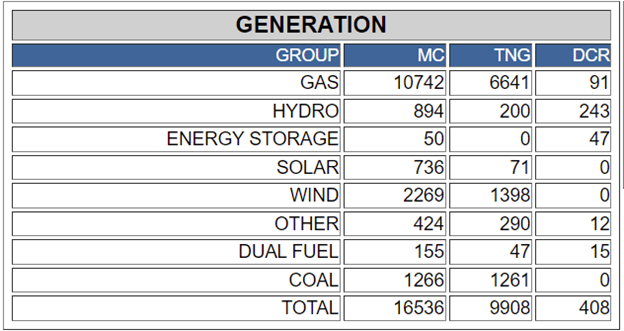

Alberta power generation, in megawatts, at 12:30 p.m. MST, Thursday, Jan. 13, 2022. Source: AESO
On at 12:30 MST on Jan. 13, Alberta’s power grid was reporting its 13 solar power generating stations (12 active, Travers under construction) were bringing in a total of 71 megawatts, or 21.1 per cent of their rated capacity, when the sun was highest in the sky. It briefly hit 77 megawatts, only to fall to 61 megawatts half an hour later.

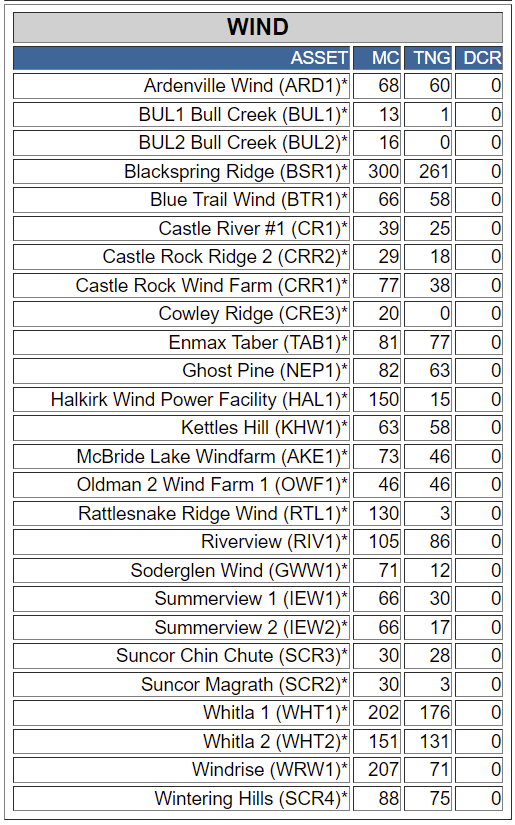

At the same time, its wind generation had picked up considerably compared to the previous week. The 26 wind farms in the province were putting out 1,398 megawatts out of an installed capacity of 2,269 megawatts. That’s 61.6 per cent.
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
On at 10:45 p.m. on Jan 5, solar and wind combined were contributing just 3 megawatts to the grid.

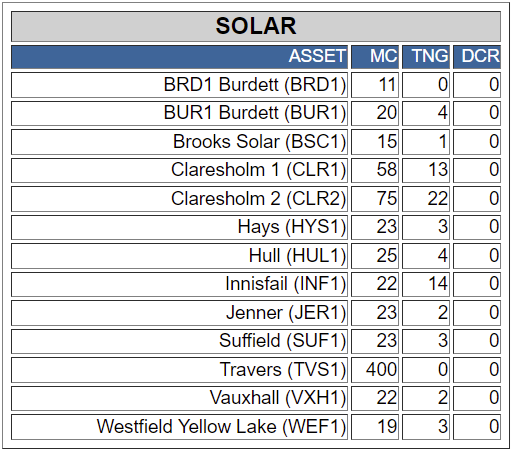

Alberta solar power generation, in megawatts, at 12:30 p.m. MST, Thursday, Jan. 13, 2022. Source: AESO
Satellite imagery from Environment Canada showed the culprit for Alberta’s lack of solar output. Satellite photos at 12:20 p.m. showed most of the Alberta and essentially all of Saskatchewan under cloud cover. Milder temperatures across Alberta meant that wind turbines did not need to shut down, as they do when it’s -30 C.
Satellite imagery of Western Canada at 12:20 p.m., MST. Source: Environment Canada
In the past two weeks, Alberta has seen three coal-fired power generators fall off its list. At the end of December, Genesee Units 1, 2 and 3 were in operations, as were Keephills Units 1 and 3, and Sundance Unit 4.
Since then, Keephills 3 has switched over to natural gas, showing up under the gas fired steam heading. Sundance 4 is also on gas fired steam list, too, but it is scheduled to retire April 1, 2022. Keephills 1 was retired on Dec. 31. TranAlta also ended mining operations at the Highvale Mine, west of Edmonton, on Dec. 31.

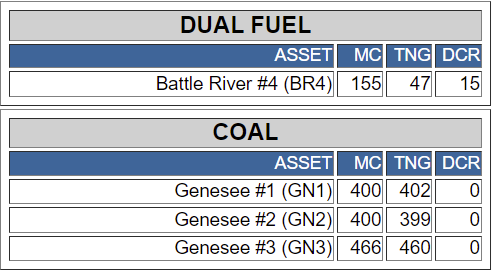

Alberta coal power generation at 12:30 p.m. MST Jan. 13, 2022. Source: AESO
