Brian Zinchuk is editor and owner of Pipeline Online
Twitter/Alberta Electric System Operator
As Alberta’s internal electrical load creeps up again to close to record levels at supper time on Wednesday, Dec. 21, the Alberta Electric System Operator (AESO) issued its second “grid alert” in one day, its third in 24 hours across two days, and its fifth in three weeks. It did this as the grid’s internal load set another record, exceeding the previous record set two days before.
The AESO declared a Grid Alert at 4:24 p.m. as frigid temperatures affected some generation facility operations.
Please consider conserving electricity through peak consumption hours of 4-7 p.m. Check out our website for tips: https://t.co/LfEEnjP5F5 pic.twitter.com/UXjbvi48lA— AESO (@theAESO) December 21, 2022
Earlier the same day, the AESO advised Albertans to conserve power usage for three hours, starting at 8:25 a.m. That grid alert was linked to the Keephills Unit 3 natural gas plant going down. At the same time, wind power production was minimal and solar had yet to start producing.
Continued extreme cold weather, high electricity demand, and an unplanned outage has prompted the AESO to declare a Grid Alert at 8:25 a.m. Find information on Grid Alerts here Grid Alerts & Electricity Conservation » AESO
— AESO (@theAESO) December 21, 2022
But being the shortest day of the year, with the lowest angle of the sun, by the noon hour, Alberta’s 1,138 megawatts of nameplate solar capacity was only providing 233 megawatts, or 20.5 per cent. At the same time, wind was producing 282 megawatts, out of a nameplate capacity of 3,618 megawatts.
At this moment 89.9% of Alberta's electricity is being produced by fossil fuels. Wind is at 7.8% of capacity and producing 2.5% of total generation, while solar is at 20.5% of capacity and producing 2.08% of total generation. At the same time we are importing 684 MW or 6% pic.twitter.com/E17IK24Y9V
— Reliable AB Energy (@ReliableAB) December 21, 2022
Then at 4:24 p.m., the AESO issued its second grid alert for the day.
“The AESO declared a Grid Alert at 4:24 p.m. as frigid temperatures affected some generation facility operations.”
That was only four hours after returning to normal grid conditions from the first alert. And for the second time in a day, the pool price for power maxed out at $1000 per megawatt-hour (technically $999.99)
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
As for those frigid temperatures – wind turbines must shut down at -30C temperatures. And that was indicative of the wind fleet. While six facilities were running at roughly half their nameplate capacity, at 4:56, 25 of 36 wind-powered facilities were producing zero power, just as demand was spiking. And, unsurprisingly, zero solar facilities were producing any power, either.
Extreme cold warnings blanketed all of Alberta on Dec. 21. Environment Canada
The entire province of Alberta was under extreme cold warnings.

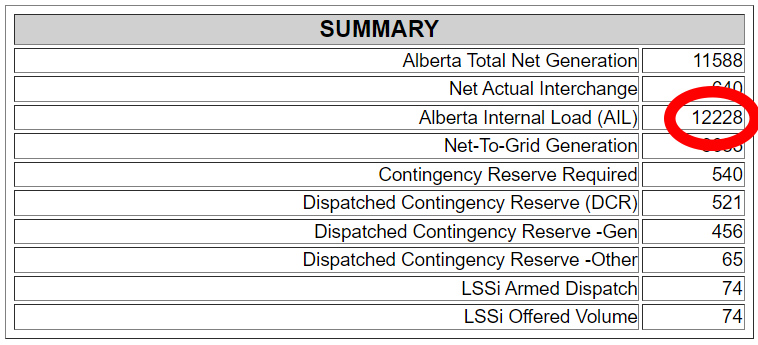

At 5:27 p.m. on Wednesday, Dec. 21, Alberta’s internal power load hit 12,228 megawatts. Alberta Electric System Operator
At 5:27 p.m., the Alberta internal load was 12,228 megawatts, exceeding by 41 megawatts he all-time peak of 12,187 megawatts established on Monday, December 19. Of its 10,894 megawatts of natural gas powered power generation, 9,058 megawatts were deployed, and there was only 30 megawatts of available spare natural gas power, known as “Dispatched (and Accepted) Contingency Reserve.”
Nearly all of the 386 megawatts of continency reserve remaining was from two hydro facilities – Bow River, which had 58 megawatts of spare capacity, and Brazeau Hydro, which had 230 megawatts of spare capacity as contingency reserve. Of 70 megawatts of battery capacity, 68 megawatts was available as dispatched contingency reserve, but none was being used. Three of those four batteries were used during the morning grid alert. eReserve1 Rycroft, eReserve2 Buffalo Creek and eReserve3 Mercer Hill were used from 9:10 to 9:50 a.m., according to Dispatcho.app.
On this, the shortest day of the year, Alberta’s largest solar facility, Travers, produced power for 7 hours, 38 minutes. It’s first megawatt came onto the grid at 9:39 a.m. It peaked at 155 megawatts at 1:30 p..m., 33 per cent of nameplate capacity, and started declining gradually, with a small bump to 148 megawatts at 2:46 p.m. By 5:17 pm., it contributed its last 2 megawatts to the grid.

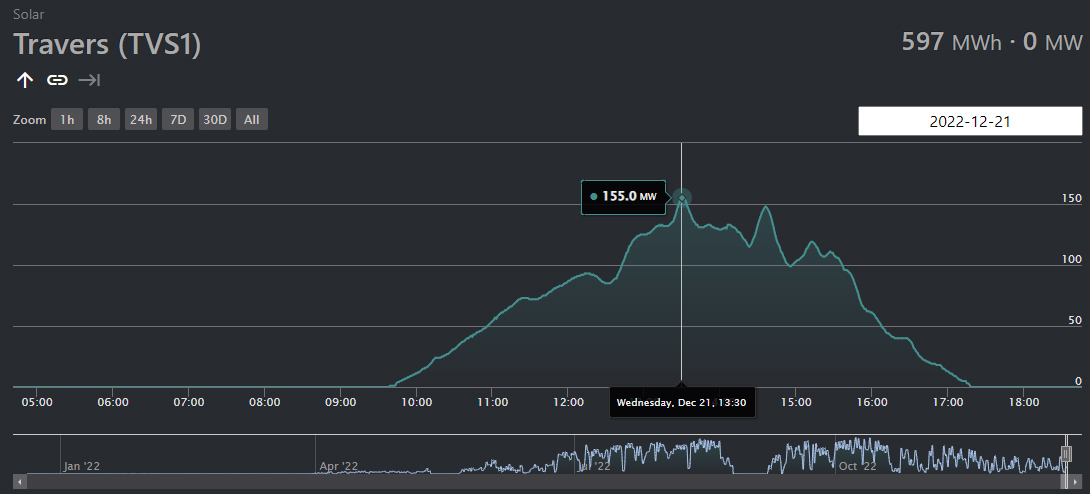

This was the output from the Travers Solar Facility, Alberta’s largest, at 465 megawatts capacity. It peaked at 155 megawatts on the shortest day of the year. Dispatcho.app
