Brian Zinchuk is editor and owner of Pipeline Online
Twitter/Alberta Electric System Operator
Wind craters, the sun went down and two thermal plants were offline during extremely cold evening
Despite having more combined coal, oil and gas reserves than almost any other jurisdiction on the planet, the province of Alberta was, once again, in an energy crisis the evening of Friday, Jan. 12.
The Alberta Electric System Operator (AESO) posted a “grid alert,” warning the population to conserve its electrical power. If not, the grid was in danger of blackouts. That alert was declared at 4:15 p.m., and released on X.
It said, “High power demand due to extreme cold, two large natural gas generator outages, and very low renewable power on the system have prompted the AESO to declare a Grid Alert.”
High power demand due to extreme cold, two large natural gas generator outages, and very low renewable power on the system have prompted the AESO to declare a Grid Alert. Find information on Grid Alerts here https://t.co/eQAHOzfzgI pic.twitter.com/1pzOJt2T1L
— AESO (@theAESO) January 12, 2024
They also reissued a graphic used last winter, suggesting Albertans not use their dishwasher between 4 p.m. and 7 p.m.
With a Grid Alert in effect, please consider conserving electricity through peak evening consumption hours. Check out our website for tips. https://t.co/lzRxJb1Bti pic.twitter.com/tr7z9Ro2qV
— AESO (@theAESO) January 13, 2024
According to the AESO event log, H.R. Milner (HRM), a 300 megawatt combined cycle natural gas-fired power station went offline much earlier in the day, at 12:31 a.m. and remained offline as of the time of the alert.
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
Alberta Premier Danielle Smith posted this on X shortly after the AESO issued the alert:
“Warning: the Alberta Electric System Operator (AESO) has issued a grid alert for Alberta. As of 4pm today, wind power is only generating 8MW of electricity… that’s only enough to power less than 10 homes for one day. Thankfully, natural gas plants have increased capacity to keep Albertans warm and safe.”
That tweet was later deleted and replaced (see below). The numbers Smith posted were questionable, as SaskPower usually refers to a megawatt as being capable of supplying 1000 homes, so eight megawatts would be 8,000 homes. And it appears she conflated 8 megawatts with 8 megawatt-hours, which is the generation of 8 megawatts for a period of one hour. Megawatts in an instantaneous measurement, megawatt-hours adds the dimension of time. (a megawatt is a measure of power, but a megawatt-hour is a measure of energy – power over a period of time)
Back to the timeline
According to the AESO, At 4:54, Alberta’s solar was producing zero megawatts out of an installed capacity of 1,650 megawatts. But wind had fallen to six megawatts out of 4,481 megawatts. That works out to 1 one-thousandth of capacity, or 0.1 per cent.
Only three of Alberta’s 45 wind farms were producing any power whatsoever, with two producing one megawatt and one producing four megawatts. And since the sun had gone down, the 43 solar farms were producing zero power, as well. That means out of 88 solar and wind faculties, only three were producing power. And those three were producing six megawatts out of an installed capacity of 6,131 megawatts of wind and solar.
At the same time, Alberta’s last remaining coal plant, with two units running strictly coal, was producing 813 out of 820 megawatts, or 99.1 per cent capacity. Those two units at that one plant, at that moment were producing 135.5x the output of the entire fleet of grid-scale wind, and solar, combined in Alberta.
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
Calm down
The previous evening, as temperatures fell to the -30 C range, Alberta’s wind farms shut down one after the other. They must do this to prevent possible damage due to cold brittle behaviour of materials, which dramatically reduces the strength of certain materials based on the temperature. Operating them at full bore runs the risk of something shattering in a catastrophic failure. As this happened, most of the wind farms still had sufficient wind to produce at least some power. Blackspring Ridge, for instance, was producing around 200 megawatts of its 300 megawatt capacity before it was spooled down.
But by Jan. 12, calm conditions meant not only was it too cold to operate the wind turbines, there was little to no wind to turn them in the first place. By late evening, Windy.com showed locations like Pincher Creek, Vulcan, Medicine Hat and Lethbridge, all wind-producing areas, were around 4 knots sustained wind speed.
This is a common occurrence in extreme cold conditions, and happened time and again last year, as reported by Pipeline Online numerous times.

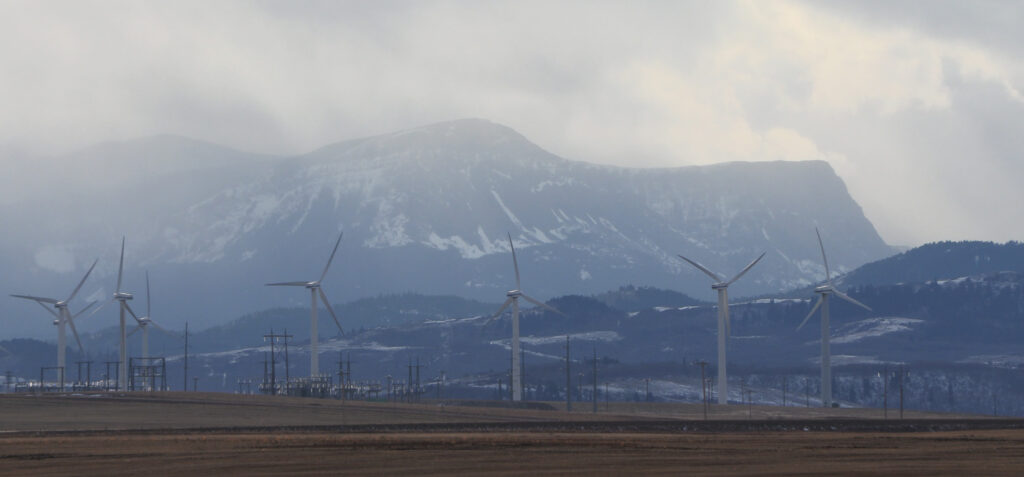

Wind turbines near Pincher Creek, Alberta, on Dec. 1, 2023. Photo by Brian Zinchuk
Contingency
Generally speaking, power needs to be consumed at the instant its produced. There is very little in the way of grid-scale storage in the Canadian electrical grid, although Alberta has been building it out in recent years.
Grid operators must maintain a small amount of excess capacity at all times, known as a “dispatched contingency reserve” (DCR) The NERC standard is to maintain at least 4 per cent DCR. That’s because if the DCR runs out, all sorts of bad things happen, with voltage drops and frequency variance which then can lead to cascading brownouts, including additional power generating units tripping off and whole areas going without power. That’s precisely what happened on Feb. 15, 2021, when the historic blackout hit Texas for several days, leading to hundreds of deaths. At that time, ERCOT’s frequency fell below 59.4 hertz for four minutes, 27 seconds. If it had remained below that level for an additional four minutes and 37 seconds, most of the grid would have gone down.
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
On Jan. 12, three of Alberta’s 10 grid-scale batteries were each providing 16 megawatts of their 20 megawatts capacity in the late afternoon. These three, eReserve7, eReserve8 and eReserve 9, have been run in a different pattern compared to their seven predecessors. For each day since Dec. 20, they have been run at one-quarter capacity, five megawatts each, for just under an hour, during the 6 p.m. hour. On rare occasions, they have output a bit more, but not the full 20 megawatts.
But Friday, Jan. 12, proved to be the exception. eReserve8 provided very short blips around 1 and 2 p.m., then a solid 5 megawatts from 4:05 to 5:03 p.m. But a few minutes later it was pumping out 16 megawatts from 5:21 to 6:05 p.m. A similar pattern was done by eReserve7 and eReserve9.

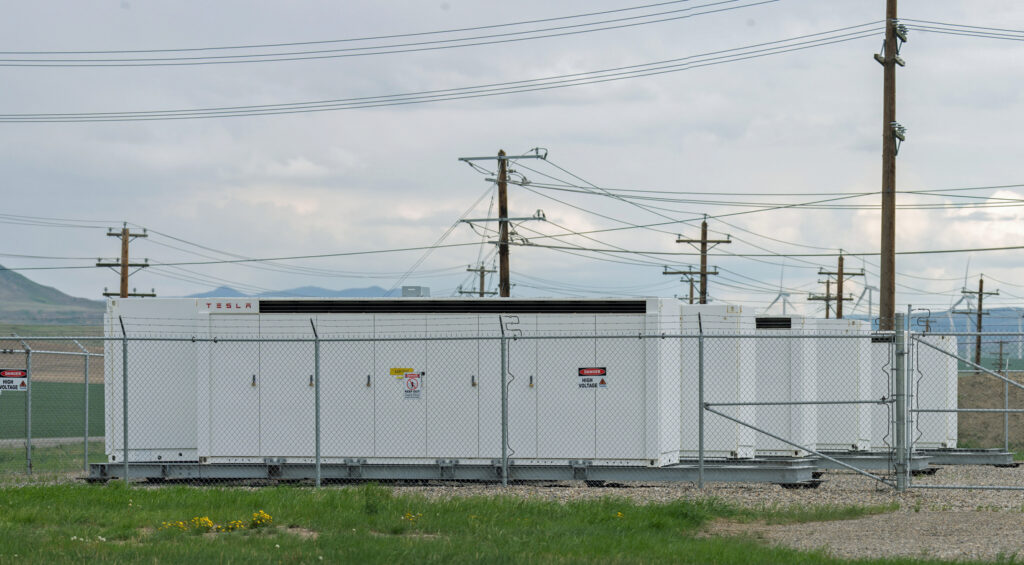

Summerview batteries near Pincher Creek, made by Tesla. Photo by Clive Schaupmeyer
The first six 20 megawatt eReserve units were being held in dispatched contingency reserve. The Summerview battery was not listed as providing power or on the reserve list. However, by 6:28 p.m., all 10 batteries were taken off the contingency reserve. By that point, there was only 92 megawatts of natural gas left in reserve and 204 megawatts of hydro for a total of 296 on a demand of 11,918 megawatts. that’s a margin of 2.5 per cent, where, as stated above, the NERC reliability standards are four per cent contingency reserve.
Out of a total of 11,832 megawatts of simple cycle, combined cycle, cogeneration and gas-fired steam (former coal plants converted to natural gas), natural gas-fired was pumping out 9,191 megawatts, with those aforementioned 92 megawatts to spare for dispatched reserve. It should be noted that 900 of those megawatts listed are not yet fully online, at the Cascade Power Project.
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
Back up
By 6:56, HR Milner was back online. These large generators can’t just spin up to full power instantly, however, and at 9 p.m. it was producing 65 megawatts. At that time, eReserve 1 through 6 were back in the game, provinding 115 megawatts of dispatched contingency reserve.
At 7:48 p.m., the AESO posted on X, “Grid challenges are easing. Stay warm and we’ll keep you posted on new developments.”
It did not, however, say that the grid alert had ended. Indeed, the urgency for more power seemed apparent as the operators of the brand-spanking new Cascade Power Project chose Friday evening to begin firing up their 450 megawatt Unit 1. That facility is still very much in its start up phase, having produced just a few megawatts for a few minutes or hours sporadically during the previous few days. It was turning, but just putting out 9 megawatts late into the evening.
Smith posted at 8:27 pm., “Warning: the Alberta Electric System Operator (AESO) has issued a grid alert for Alberta. Right now, wind is generating almost no power. When renewables are unreliable, as they are now, natural gas plants must increase capacity to keep Albertans warm and safe. Please stay safe.”
⚠️ Warning: the Alberta Electric System Operator (AESO) has issued a grid alert for Alberta.
Right now, wind is generating almost no power.
When renewables are unreliable, as they are now, natural gas plants must increase capacity to keep Albertans warm and safe.
Please stay… pic.twitter.com/XuqYbLp8jM
— Danielle Smith (@ABDanielleSmith) January 13, 2024
At 9:17 p.m. the AESO posted on X that the grid alert was over. “The Grid Alert has ended, and Alberta has returned to normal grid conditions. There are no reliability concerns at this time, and we thank our System Controllers for keeping the grid stable 24/7, under any and all conditions!” it said.
The AESO event log showed the alert ended at 9: 12 p.m. Alberta had been under grid alert for three minutes short of five hours, and more cold weather was forecast for the next day.
The Grid Alert has ended, and Alberta has returned to normal grid conditions. There are no reliability concerns at this time, and we thank our System Controllers for keeping the grid stable 24/7, under any and all conditions! pic.twitter.com/MkomwKTaIL
— AESO (@theAESO) January 13, 2024
Power prices

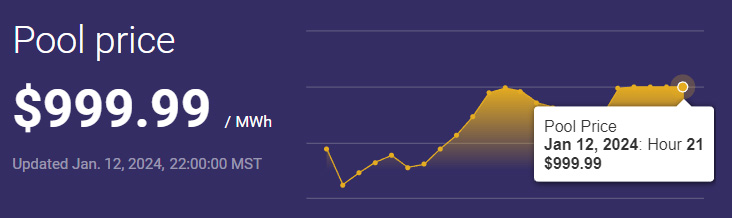

While all this was going on, Alberta’s pool price for electricity hit its theoretical maximum of $999.99 per megawatt-hour at 6 pm. and stayed there at least four hours.
This bookended the extremes the Alberta electrical market had seen in price in recent weeks, as on Dec. 26, the pool price for power fell to $0 per megawatt-hour for six hours. At that time, a surplus of wind power was a major factor, significant thermal power available, and reduced system demand. It was the exact opposite of Jan. 12, which set a record for power demand the day before.
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
Pipeline Online provides the in-depth coverage on energy issues in this province that no other media comes close to. It does NOT receive federal journalism subsidies, and it will NOT allow the federal government to limit its freedom of speech, as it is now moving to regulate podcasts. With recent action from Facebook to block news links, it’s important to follow Pipeline Online in other manners. The easiest is to check each morning at PipelineOnline.ca, with the top story posted at 7 a.m. Monday to Friday, and additional coverage throughout the day and weekend. But you can also follow on LinkedIn and Twitter. You can follow editor Brian Zinchuk online at LinkedIn as well (you’ll see more stories that way). You can subscribe to a weekly newsletter. And if you wish to advertise and support this journalism, call 306-461-5599.
