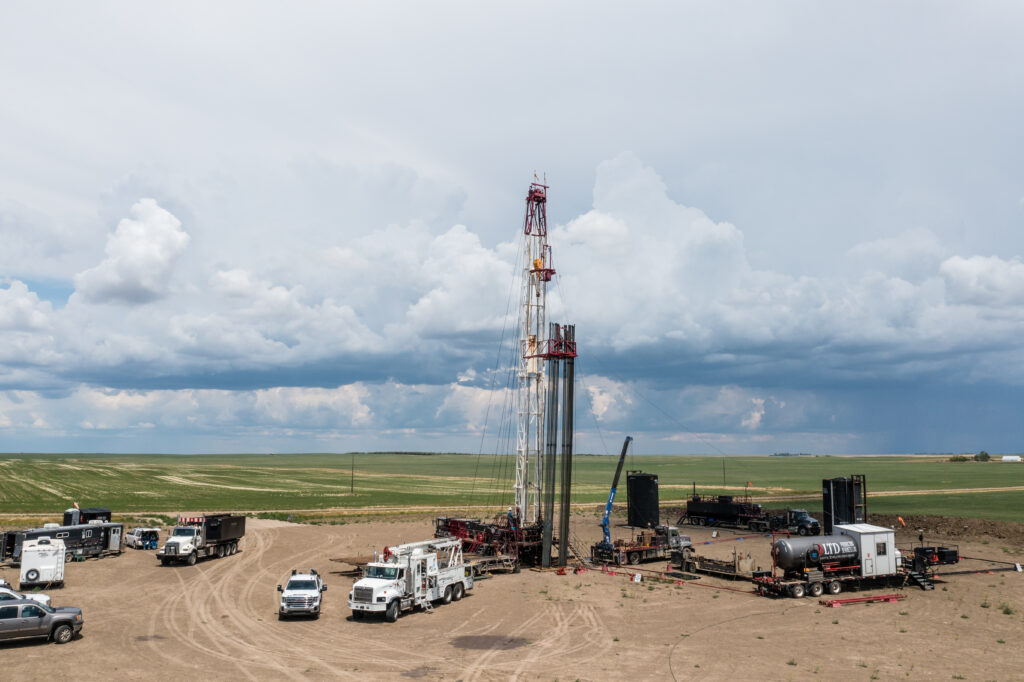

Royal Helium’s third well, drilled at Climax, Saskatchewan, the summer of 2021. Photo by Brian Zinchuk

Critical minerals provide the materials needed for nearly every aspect of our day-to-day life and are becoming increasingly important for growing a prosperous future. Canada’s recently announced Critical Minerals List highlights 31 minerals and metals that are crucial for green energy, technology, transportation and healthcare. Saskatchewan’s own Critical Minerals Strategy focuses on the critical minerals found in the province including potash, uranium, rare earth elements and a has a strong focus on helium.

Helium is a unique addition to this list. A colourless gas that’s lighter than air, helium is the only critical mineral that isn’t truly a mineral. It is a commodity with rising demand in a global shortage.

While gaseous helium is mostly known for its use in party balloons, it is a critical substance that rarely has a substitute in both industry and healthcare. When mixed with oxygen, helium can be used to help people with asthma and other respiratory aliments breathe easier. In the manufacturing industry, helium is often used as a shielding gas in arc welding and in the production of semiconductors.

When cooled down to -269 degrees Celsius, helium transforms into a liquid with superior cooling properties. Liquid helium is essential for magnetic resonance imaging (MRI) machines to function in running scans, allowing for crisp, clear images needed for diagnostics. Synchrotrons and particle colliders — like the Large Haldon Collider — require helium to maintain stable temperatures needed for experiments.

Helium is even used as a coolant in certain types of nuclear reactors.
