ESTEVAN – There’s been a lot of talk about “just transition,” “energy transition” and “coal transition,” but precious little action converting fossil fuel workers to new industries. Rod Cullen, a coal miner from Estevan, is bucking that trend and has launched a business to allow him to eventually “transition” away from his job operating dozers and draglines. He’s also the first currently employed coal miner to successfully secure coal transition funding to help launch a new venture.
That funding was from the Southeast Saskatchewan Economic Partnership and the City of Estevan. The money originated from the Government of Saskatchewan, not the federal government.
This summer Cullen launched Predator Inspections, which uses a high-end, enterprise-quality drone and multiple different sensor packages to provide detailed inspection reports. While he’s targeting oil and gas, he’s also working on developing markets from municipal to agriculture to power.

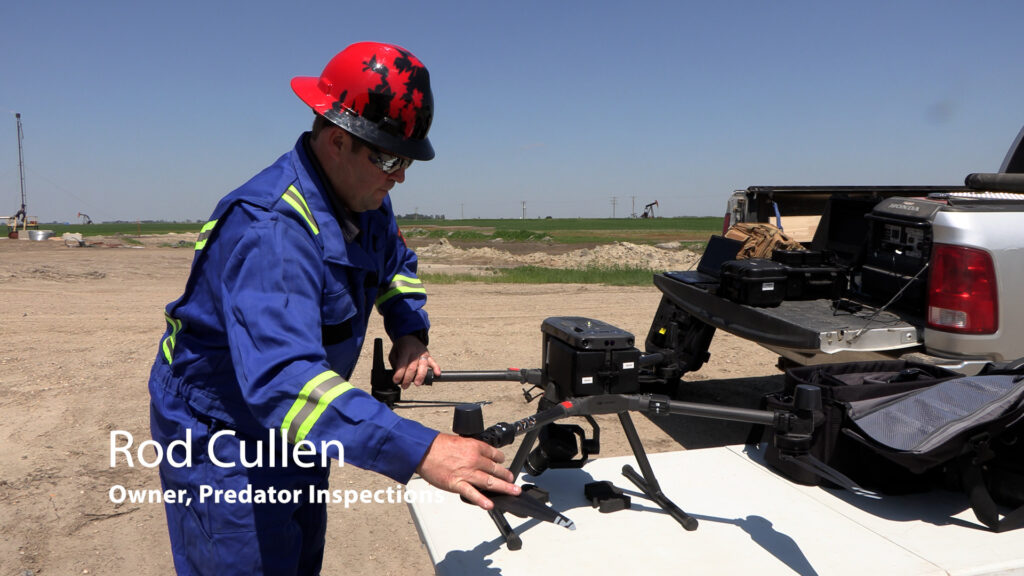

Rod Cullen, owner, Predator Inspections
“We’re launching a business,” Cullen said on June 10. The “we” refers to his wife and business partner, Brandy Cullen, who handles the administration and marketing side of the business in addition to her own venture, SE Bookkeeping Services.
Cullen said, “We’re using my aviation background to segue into drones. They changed the drone laws, which favours my aviation background and training. And I have experience flying low and flying oilfield inspections.”
Enterprise drone

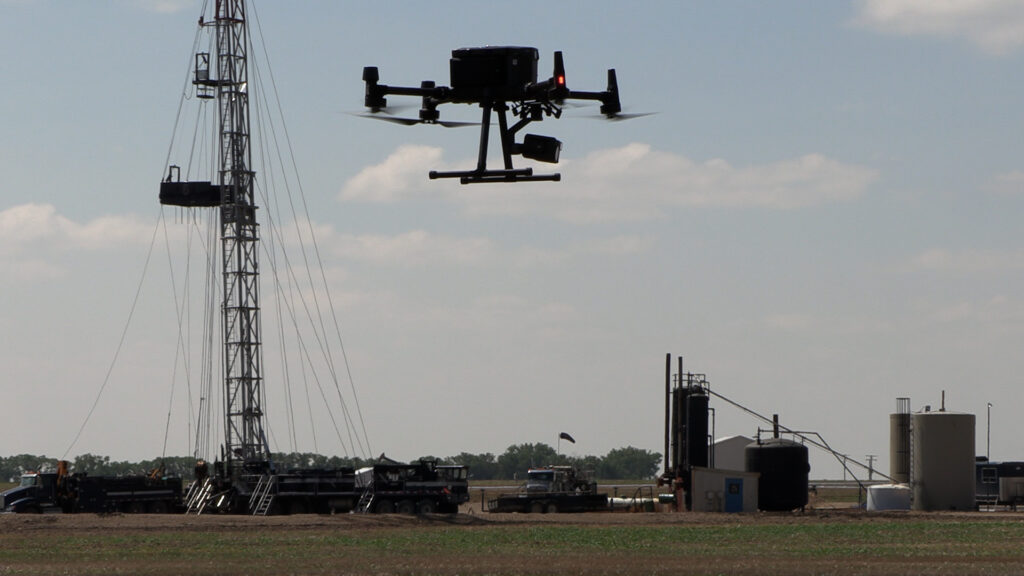

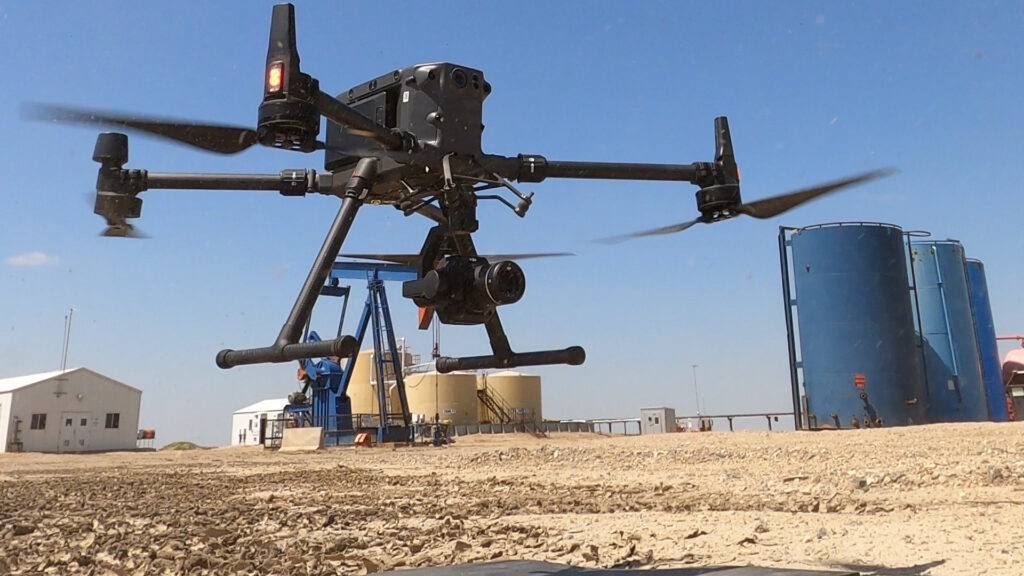

This is not a drone you pick up at Staples. This drone, combined with its sensors, is considered an aircraft by Transport Canada. It required Cullen to get special training and Transport Canada licensing known as an advanced RPAS (Small Remotely Piloted Aircraft System), certificate of registration for the aircraft, as well as the necessary insurance.
This drone is also built strong enough to deal with prairie winds and weather.
The aviation business has always been a key part of Cullen’s life. Out of high school, he obtained his commercial pilot’s licence. But colour blindness limited his opportunities flying, so he went into the oilfield and worked in hydraulic fracturing with Schlumberger for nine years. Then he became a coal miner at Estevan for most of the last nearly 13 years. He took some time off from the mine to get his agricultural aerial spraying training in North Battleford, with a commercial pesticide license and aerial applicator certification.
- 0073 SaskWorks-Pipeline Online0073 SaskWorks-Pipeline Online
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
Then he spent over a year doing aerial pipeline inspection, again, flying low. But eventually he returned to mining.
Rod Cullen. Photos by Brian Zinchuk
The problem is that the federal government has decreed that conventional coal-fired power generation must end by 2030, and unless carbon capture is expanded among the remaining coal fleet, there won’t be much need for miners after that time. Even if SaskPower continues to operate the carbon capture-equipped Boundary Dam Unit 3 past 2030, if the other units in the fleet shut down, there won’t be much coal used beyond that.
So for Cullen, as with other miners, the clock has been ticking to find a “Plan B.”
This drone can be equipped with a variety of highly specialized sensors for specific applications.
Drone tech ready for big time
The drone idea combines his skill in and love of flying with a practical business opportunity. Unmanned aerial vehicles (UAVs), commonly called drones, have become dramatically more capable in recent years. While the Ukraine War has shown their crucial utility in warfighting, the number of civilian applications are staggering.
And the DJI Matrice M300RTK (Real Time Kinematics) Cullen is flying is among the most capable available for civilian applications.
“That’s why we started Predator Inspections,” Cullen said. “We want to focus on these sensors. There’s the laser methane sensor, for example, that can pinpoint where leaks are coming from, and save companies and operators time.”

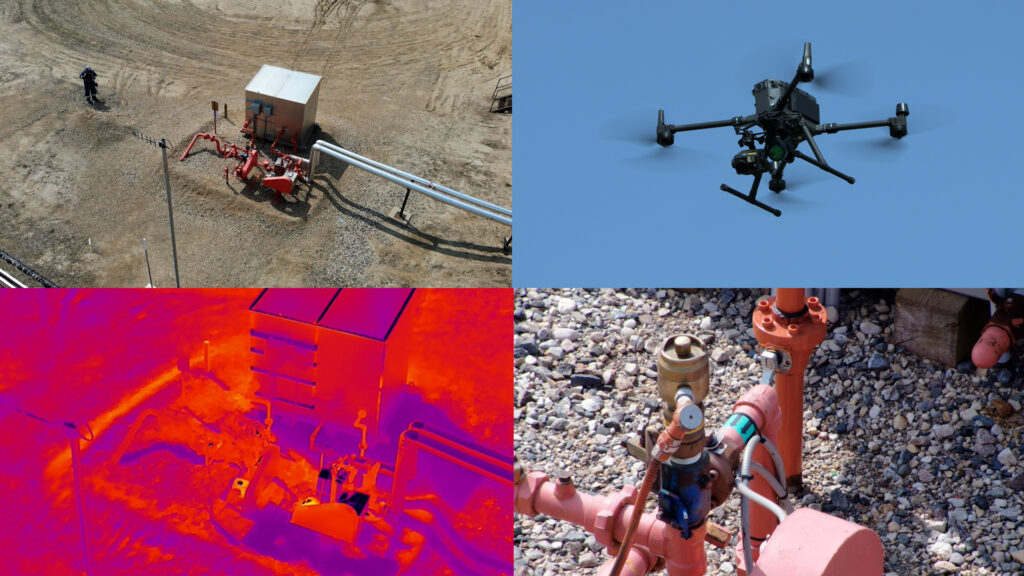

Here are three of the views from the quad sensor – top left is the wide angle, providing a sense of location. Bottom left is thermal. Bottom right is high power zoom, which is aligned with the laser methane detector. Top right shows the drone overhead. The quad sensor is on the left, and laser methane detector is on the right. In this case, it was about 20 metres above when taking the other images.
Wide, zoom, thermal and rangefinder sensor
So far Cullen has four sensor packages. The first he’s operating is a quad-sensor. It records from four cameras/sensors simultaneously. One is a wide angle, which provides the general view. The inspection camera is 20 megapixel with 23x zoom. Mounted on a stabilized gimbal, it can get incredibly detailed shots of hard to reach places, like tall flare stacks, oilfield facility roofs, tanks and racks, smokestacks, bridges, power pylons and more. Its magnification is strong enough to read serial numbers off of nameplates from a substantial distance away. Cracks, damage and the like can be seen.
The same system also has a thermal camera which allows the operator to pinpoint exact temperatures. A choice of colour palettes allows the operator to choose one that provides the most detail for the application.
- 0073 SaskWorks-Pipeline Online0073 SaskWorks-Pipeline Online
- 0072 Outlaw Buckers and Oil Kings 20240072 Outlaw Buckers and Oil Kings 2024
- 0069 Sask Oil Show 2024 banquet tickets0069 Sask Oil Show 2024 banquet tickets
- 0071 Pride Upkeep 2024 Packages0071 Pride Upkeep 2024 Packages
- 0070 Sask Oil Show 2024 pre-register0070 Sask Oil Show 2024 pre-register
- 0068 Sask Oil Show 2024 booth0068 Sask Oil Show 2024 booth
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
This thermal ability can be especially useful, as heat is often an indicator of something about to go wrong, from a hot bearing to an electric motor. Hot wiring can also be indicative of a fault. That allows an inspection to identify possible failure points before they become an issue, allowing preventative maintenance before a failure results in a shutdown.
The thermal camera can also be used for search and rescue.
This sensor package can also be used to do inspections in hard to reach places that are high, or could be a sour gas environment. Instead of sending people in, masked up with supplied air on hoses, or self-contained breathing apparatus, the drone can fly overhead and do extremely high resolution inspections.

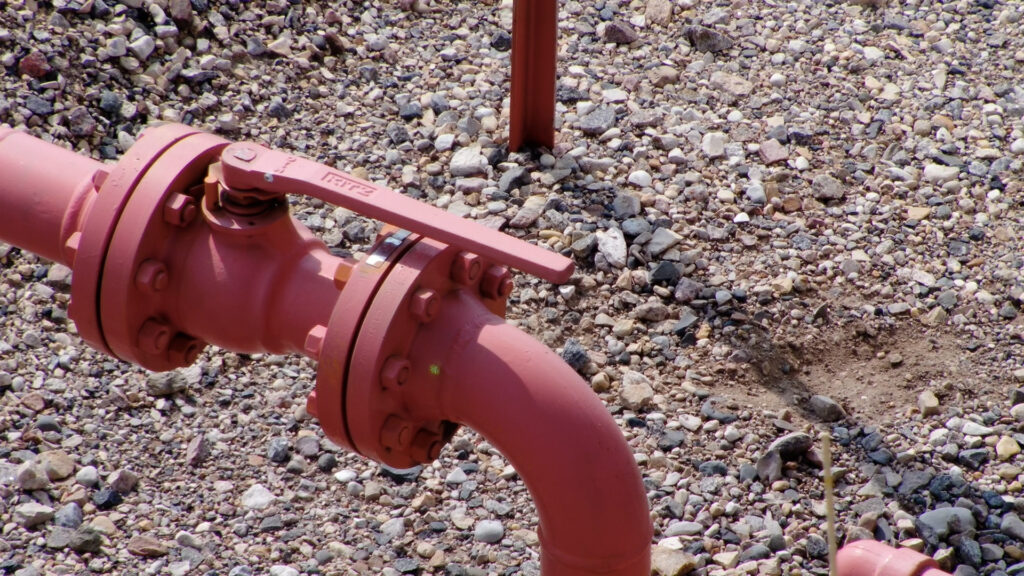

The green dot just to the right of the flange indicates the laser methane detector sensor. This is an actual screenshot taken by the quad sensor. Using them together, the methane detector finds emissions, and the quad sensor records where they are.
Methane detection and ESG
One of the key sensors is a laser methane detector.
“We believe we’re the only one in southeast Saskatchewan with this equipment. I think we’re the only one in the province with this laser methane sensor,” he said.
This sensor points a green laser and quantifies any methane that may be emitted. This can be from a wellhead, flange, piping, or thief hatch. And by mounting the laser methane detector alongside the quad-sensor, Cullen can measure the methane, get a wide angle, high power zoom and thermal video all at the same time, pinpointing possible leaks for repair. He can aim the sensor package at a pipe rack, for instance, and follow the pipes, looking for leaks, all the while recording video and quantifying any potential methane emissions. The same can be done for thief hatches or flanges.
This is a key, as international agreements and federal regulations are becoming increasingly strict on methane emissions. Methane, the prime component of “natural gas,” is considered to be roughly 21x more potent a greenhouse gas than carbon dioxide. So raw methane emissions, from venting or other processes, have been heavily targeted by regulators, and that is likely only to increase.

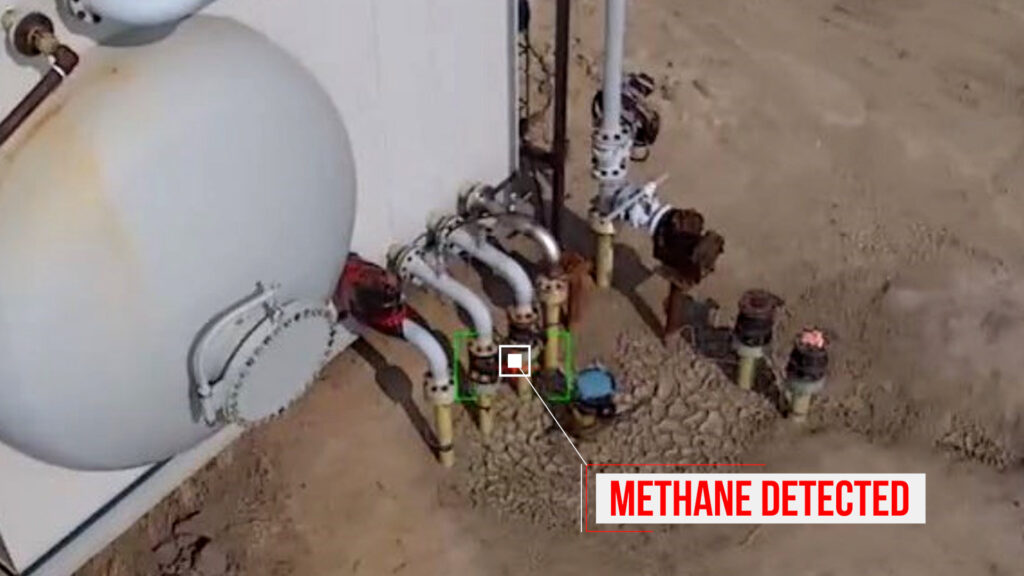

Methane was detected at this flange. This is an actual screenshot taken from the quad sensor, but the text box was added for emphasis.
