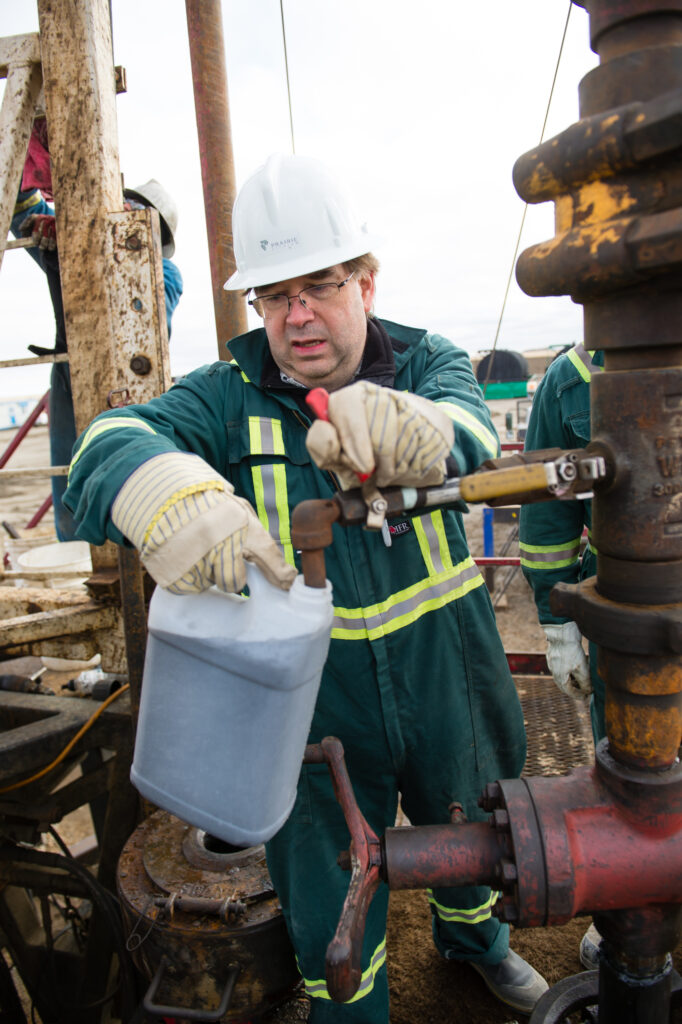

Dr. Ben Rostron taking the very first sample from the very first targeted lithium well drilled in Saskatchewan on Oct. 19, 2021, one year ago. Photo by Brian Zinchuk

EMERALD PARK – When you’re first exploring for minerals in Saskatchewan, you take out an exploration permit on the lands you’re looking at. And when you’re serious about doing something with those lands, you convert those lands into leases. This is typically done by drilling a well.

But before you get into a major, multi-well drilling program, it’s important to delineate your resource, figuring out just how far out your resource extends. Is it a one-well wonder, or prolific?

These are all things Prairie Lithium Corporation is doing right now in the Torquay area, seeking to develop lithium from brines deep in Saskatchewan’s sedimentary geology.

A little over a year ago, Prairie Lithium drilled and tested the first targeted lithium well in Saskatchewan. And on Oct. 19 of this year, it announced that, to its knowledge, it had converted the first two lithium exploration permits to leases in this province.

The company said it had converted two crown mineral exploration permits with a combined area of 6,795 acres, into 21-year mineral leases. Those mineral leases, SML001 and 002, are the first crown mineral leases issued for lithium by the province, the company said.

  • 0076 Latus only
    0076 Latus only
  • 0075 Fast Trucking OutlaW Buckers 01
    0075 Fast Trucking OutlaW Buckers 01
  • 0074 General Well Servicing Outlaw Buckers
    0074 General Well Servicing Outlaw Buckers
  • 0073 SaskWorks-Pipeline Online
    0073 SaskWorks-Pipeline Online
  • 0072 Outlaw Buckers and Oil Kings 2024
    0072 Outlaw Buckers and Oil Kings 2024
  • 0069 Sask Oil Show 2024 banquet tickets
    0069 Sask Oil Show 2024 banquet tickets
  • 0071 Pride Upkeep 2024 Packages
    0071 Pride Upkeep 2024 Packages
  • 0070 Sask Oil Show 2024 pre-register
    0070 Sask Oil Show 2024 pre-register
  • 0068 Sask Oil Show 2024 booth
    0068 Sask Oil Show 2024 booth
  • 0067 PFM SaskWorks Payroll Investment Plan
    0067 PFM SaskWorks Payroll Investment Plan
  • 0066 WBPC Promo video 30 seconds
    0066 WBPC Promo video 30 seconds
  • 0064 Estevan OTS
    0064 Estevan OTS
  • 0063 Turnbull Excavating hiring crusher
    0063 Turnbull Excavating hiring crusher
  • 0062 TED_EPAC_Technology_30
    0062 TED_EPAC_Technology_30
  • 0061 SIMSA 2024 For Sask Buy Sask
    0061 SIMSA 2024 For Sask Buy Sask
  • 0058 Royal Helium Steveville opens anonymous rocket
    0058 Royal Helium Steveville opens anonymous rocket
  • 0055 Smart Power Be Smart with your Power office
    0055 Smart Power Be Smart with your Power office
  • 0052 Predator Inspections
    0052 Predator Inspections
  • 0051 JML Hiring Pumpjack assembly
    0051 JML Hiring Pumpjack assembly
  • 0049 Scotsburn Dental soft guitar
    0049 Scotsburn Dental soft guitar
  • 0046 City of Estevan This is Estevan
    0046 City of Estevan This is Estevan
  • 0041 DEEP Since 2018 now we are going to build
    0041 DEEP Since 2018 now we are going to build
  • 0032 IWS Summer hiring rock trailer music
  • 0022 Grimes winter hiring
  • 0021 OSY Rentals S8 Promo
  • 0018 IWS Hiring Royal Summer
  • 0013 Panther Drilling PO ad 03 top drive rigs
  • 0011
  • 0006 JK Junior
  • 0002 gilliss casing services
    0002 gilliss casing services
  • 9002 Pipeline Online 30 sec EBEX
    9002 Pipeline Online 30 sec EBEX
  • 9001



It’s an important step, because leases are required before companies are allowed to produce a resource at commercial-scale production rates. The company said this achievement illustrates the progress Prairie Lithium has been making towards readying its resource for deployment of direct lithium extraction technology (DLE) on its lithium-rich brine resource in Saskatchewan.

Zach Maurer, president, CEO and founder of Prairie Lithium, right, and the company’s geoscience manager, Chelsey Hillier, watching results during the drilling of the company’s first lithium well on Sept. 27, 2021. On the other side of the window, Panther Drilling was making hole.  Photo by Brian Zinchuk

Pipeline Online spoke to Prairie Lithium president and CEO Zach Maurer on Oct. 19 by phone.

Regarding these leases, he said, “We’ve converted the exploration permits that cover our minerals from the well that we drilled last year, and the exploration permit directly adjacent to the north of the well we drilled last year. Having a mineral lease in hand is a key step towards readying the resource for larger scale brine production testing. With exploration permits, you can explore but not produce sufficient volumes that are needed to support the next phase of DLE technology development.”

Conversion to a lease is only possible when a company has met the minimum work requirement expenditure associated with an exploration permit. Prairie Lithium’s conversion of mineral permits to 21-year mineral leases is a direct result of the exploration work undertaken in 2021 to better understand the distribution of lithium in the Duperow Aquifer in Southeast Saskatchewan. The exploration program included drilling a new well (14-33-002-12 W2M) and re-completing a well at (01-02-001-12 W2M).

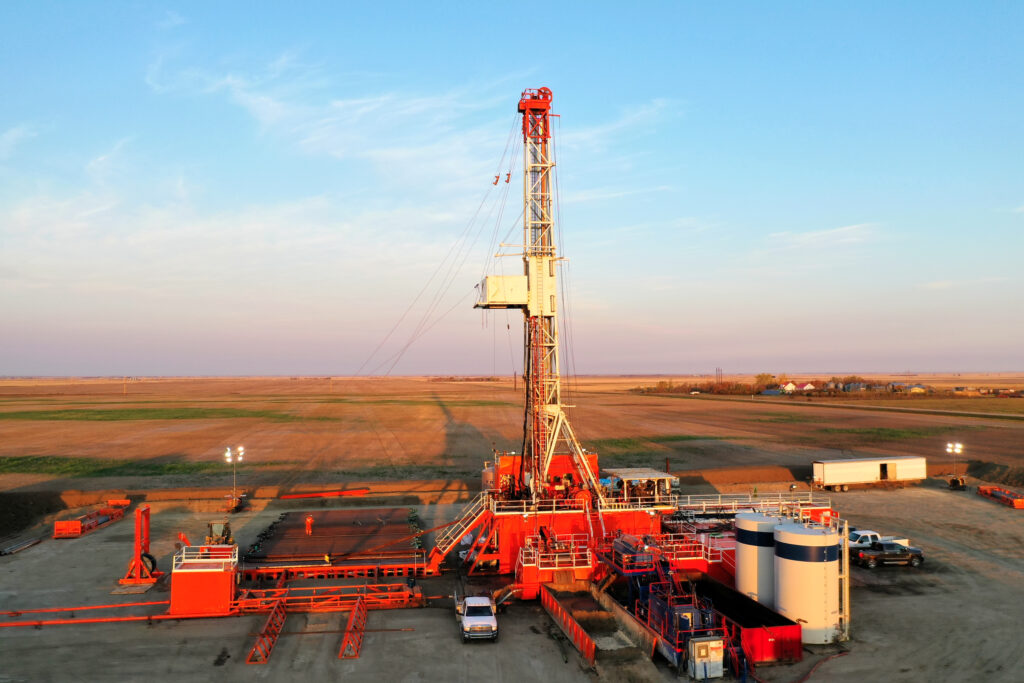

Panther Drilling of Weyburn drilled Prairie Lithium’s first well, northwest of Torquay, in late September, 2021. It was the first targeted lithium well drilled in Saskatchewan. Photo by Brian Zinchuk



That first well was drilled a few kilometres northwest of Torquay, and was the aforementioned first lithium well drilled. The second well was originally drilled by Deep Earth Energy Production (DEEP) within a few hundred metres of the U.S. border, just west of the Port of Torquay. It was initially drilled as part of DEEP’s exploration program to better understand the geothermal potential of the area, and is among the deepest wells drilled in the province. Going right to the Precambrian basement, it had the depth that allowed Prairie Lithium to recomplete it in the zones they are targeting – the Duperow formation.

  • 0076 Latus only
    0076 Latus only
  • 0075 Fast Trucking OutlaW Buckers 01
    0075 Fast Trucking OutlaW Buckers 01
  • 0074 General Well Servicing Outlaw Buckers
    0074 General Well Servicing Outlaw Buckers
  • 0073 SaskWorks-Pipeline Online
    0073 SaskWorks-Pipeline Online
  • 0072 Outlaw Buckers and Oil Kings 2024
    0072 Outlaw Buckers and Oil Kings 2024
  • 0069 Sask Oil Show 2024 banquet tickets
    0069 Sask Oil Show 2024 banquet tickets
  • 0071 Pride Upkeep 2024 Packages
    0071 Pride Upkeep 2024 Packages
  • 0070 Sask Oil Show 2024 pre-register
    0070 Sask Oil Show 2024 pre-register
  • 0068 Sask Oil Show 2024 booth
    0068 Sask Oil Show 2024 booth
  • 0067 PFM SaskWorks Payroll Investment Plan
    0067 PFM SaskWorks Payroll Investment Plan
  • 0066 WBPC Promo video 30 seconds
    0066 WBPC Promo video 30 seconds
  • 0064 Estevan OTS
    0064 Estevan OTS
  • 0063 Turnbull Excavating hiring crusher
    0063 Turnbull Excavating hiring crusher
  • 0062 TED_EPAC_Technology_30
    0062 TED_EPAC_Technology_30
  • 0061 SIMSA 2024 For Sask Buy Sask
    0061 SIMSA 2024 For Sask Buy Sask
  • 0058 Royal Helium Steveville opens anonymous rocket
    0058 Royal Helium Steveville opens anonymous rocket
  • 0055 Smart Power Be Smart with your Power office
    0055 Smart Power Be Smart with your Power office
  • 0052 Predator Inspections
    0052 Predator Inspections
  • 0051 JML Hiring Pumpjack assembly
    0051 JML Hiring Pumpjack assembly
  • 0049 Scotsburn Dental soft guitar
    0049 Scotsburn Dental soft guitar
  • 0046 City of Estevan This is Estevan
    0046 City of Estevan This is Estevan
  • 0041 DEEP Since 2018 now we are going to build
    0041 DEEP Since 2018 now we are going to build
  • 0032 IWS Summer hiring rock trailer music
  • 0022 Grimes winter hiring
  • 0021 OSY Rentals S8 Promo
  • 0018 IWS Hiring Royal Summer
  • 0013 Panther Drilling PO ad 03 top drive rigs
  • 0011
  • 0006 JK Junior
  • 0002 gilliss casing services
    0002 gilliss casing services
  • 9002 Pipeline Online 30 sec EBEX
    9002 Pipeline Online 30 sec EBEX
  • 9001



While lithium is known to be present in several of the geological formations in Saskatchewan, so far the Duperow has proven to have by-far the highest concentrations.

Representative fluid samples were collected from eight separate zones in the well at 14-33 and three separate zones in the well at 01-02. In addition to collecting fluid samples, the 14-33 well was flow-tested for overall productivity because long-term sustainable production of brine will be necessary for project viability, the company said.

If this lithium thing pans out, this photo is one for the history books. Dr. Ben Rostron is performing the very first test of lithium-bearing brine taken from the very first lithium well drilled in Saskatchewan. That took place on Oct. 19, 2021. Photo by Brian Zinchuk



The permit to lease conversion allows Prairie Lithium the opportunity to advance their research and development at a meaningful scale in the field at the appropriate time.

Direct lithium extraction

So while lithium’s presence is known in various brines, the ability to process that brine into a marketable product is key to making it commercial. Prairie Lithium intends to scale-up and deploy DLE technologies that will maximize the long-term value of its resource, the company said. In parallel to its own DLE technology development, the company is also actively assessing external DLE technologies to ensure that it is utilizing the most cost effective DLE process for long-term production of its resource.

Prairie Lithium acknowledges that DLE technologies are not yet ready to be commercially deployed. The permit to lease conversion will allow Prairie Lithium the opportunity to test DLE technologies on its resource in real world conditions, it said.

  • 0076 Latus only
    0076 Latus only
  • 0075 Fast Trucking OutlaW Buckers 01
    0075 Fast Trucking OutlaW Buckers 01
  • 0074 General Well Servicing Outlaw Buckers
    0074 General Well Servicing Outlaw Buckers
  • 0073 SaskWorks-Pipeline Online
    0073 SaskWorks-Pipeline Online
  • 0072 Outlaw Buckers and Oil Kings 2024
    0072 Outlaw Buckers and Oil Kings 2024
  • 0069 Sask Oil Show 2024 banquet tickets
    0069 Sask Oil Show 2024 banquet tickets
  • 0071 Pride Upkeep 2024 Packages
    0071 Pride Upkeep 2024 Packages
  • 0070 Sask Oil Show 2024 pre-register
    0070 Sask Oil Show 2024 pre-register
  • 0068 Sask Oil Show 2024 booth
    0068 Sask Oil Show 2024 booth
  • 0067 PFM SaskWorks Payroll Investment Plan
    0067 PFM SaskWorks Payroll Investment Plan
  • 0066 WBPC Promo video 30 seconds
    0066 WBPC Promo video 30 seconds
  • 0064 Estevan OTS
    0064 Estevan OTS
  • 0063 Turnbull Excavating hiring crusher
    0063 Turnbull Excavating hiring crusher
  • 0062 TED_EPAC_Technology_30
    0062 TED_EPAC_Technology_30
  • 0061 SIMSA 2024 For Sask Buy Sask
    0061 SIMSA 2024 For Sask Buy Sask
  • 0058 Royal Helium Steveville opens anonymous rocket
    0058 Royal Helium Steveville opens anonymous rocket
  • 0055 Smart Power Be Smart with your Power office
    0055 Smart Power Be Smart with your Power office
  • 0052 Predator Inspections
    0052 Predator Inspections
  • 0051 JML Hiring Pumpjack assembly
    0051 JML Hiring Pumpjack assembly
  • 0049 Scotsburn Dental soft guitar
    0049 Scotsburn Dental soft guitar
  • 0046 City of Estevan This is Estevan
    0046 City of Estevan This is Estevan
  • 0041 DEEP Since 2018 now we are going to build
    0041 DEEP Since 2018 now we are going to build
  • 0032 IWS Summer hiring rock trailer music
  • 0022 Grimes winter hiring
  • 0021 OSY Rentals S8 Promo
  • 0018 IWS Hiring Royal Summer
  • 0013 Panther Drilling PO ad 03 top drive rigs
  • 0011
  • 0006 JK Junior
  • 0002 gilliss casing services
    0002 gilliss casing services
  • 9002 Pipeline Online 30 sec EBEX
    9002 Pipeline Online 30 sec EBEX
  • 9001



Delineation – what have they got?

On Sept. 21, Prairie Lithium announced it had acquired three oil wells that otherwise would have been abandoned due to limited oil production.

Although the wells no longer have use for oil production, they do provide Prairie Lithium with the opportunity to access the production and disposal formations required for its lithium operations.

Prairie Lithium was approached by a Saskatchewan-based oil and gas company in February 2022 with a list of wells they planned to abandon. The wells were sold to Prairie Lithium for $1 per well. This deal saved the oil and gas company the cost of abandoning the wells and saved Prairie Lithium the cost of drilling entirely new wells.

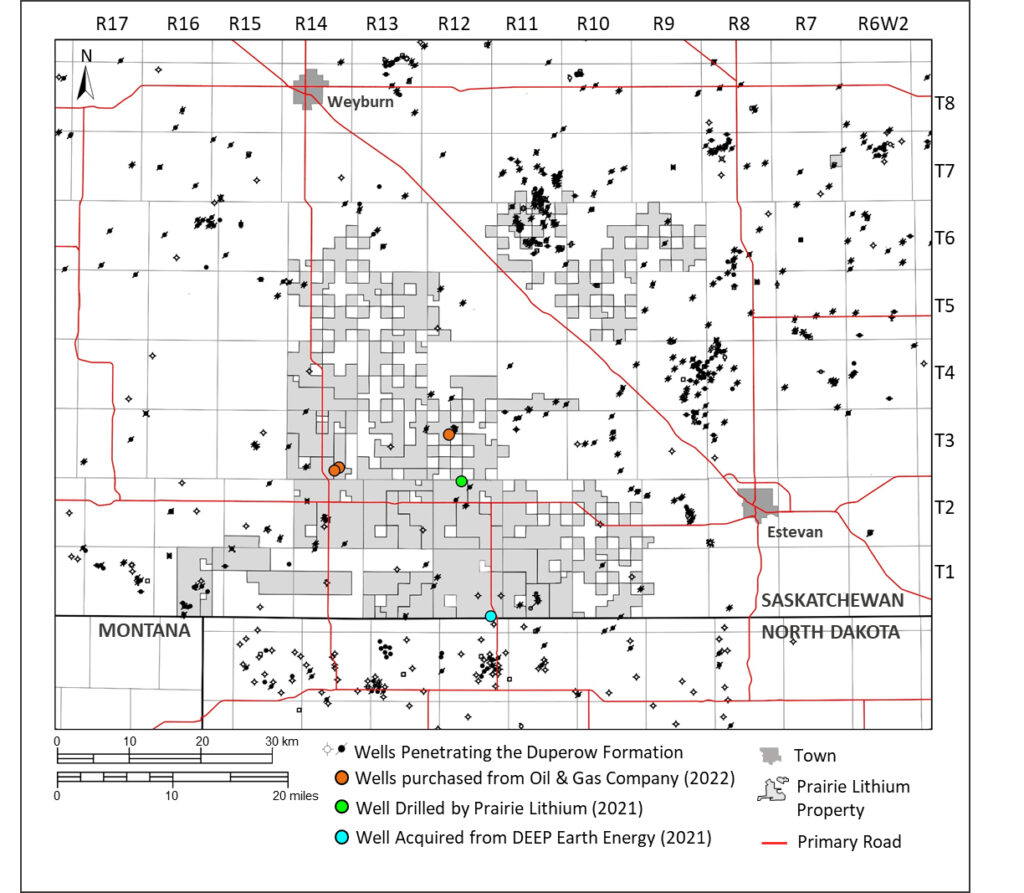

This map shows Prairie Lithium’s land base, and its now-five wells spread throughout. The purpose is to delineate the resource. Prairie Lithium

Two of the wells are located in close proximity to each other, roughly three to four kilometres north of Oungre. The third well is northwest of Torquay, and approximately seven kilometres north of Prairie Lithium’s first well drilled, 14-33.

Prairie Lithium is bringing in a drilling rig to makes these holes a little deeper, and then recompleting them with a service rig. The company has secured Panther Drilling of Weyburn and Independent Well Services Ltd. of Estevan to perform re-entry work on one of the newly acquired wellbores.

  • 0076 Latus only
    0076 Latus only
  • 0075 Fast Trucking OutlaW Buckers 01
    0075 Fast Trucking OutlaW Buckers 01
  • 0074 General Well Servicing Outlaw Buckers
    0074 General Well Servicing Outlaw Buckers
  • 0073 SaskWorks-Pipeline Online
    0073 SaskWorks-Pipeline Online
  • 0072 Outlaw Buckers and Oil Kings 2024
    0072 Outlaw Buckers and Oil Kings 2024
  • 0069 Sask Oil Show 2024 banquet tickets
    0069 Sask Oil Show 2024 banquet tickets
  • 0071 Pride Upkeep 2024 Packages
    0071 Pride Upkeep 2024 Packages
  • 0070 Sask Oil Show 2024 pre-register
    0070 Sask Oil Show 2024 pre-register
  • 0068 Sask Oil Show 2024 booth
    0068 Sask Oil Show 2024 booth
  • 0067 PFM SaskWorks Payroll Investment Plan
    0067 PFM SaskWorks Payroll Investment Plan
  • 0066 WBPC Promo video 30 seconds
    0066 WBPC Promo video 30 seconds
  • 0064 Estevan OTS
    0064 Estevan OTS
  • 0063 Turnbull Excavating hiring crusher
    0063 Turnbull Excavating hiring crusher
  • 0062 TED_EPAC_Technology_30
    0062 TED_EPAC_Technology_30
  • 0061 SIMSA 2024 For Sask Buy Sask
    0061 SIMSA 2024 For Sask Buy Sask
  • 0058 Royal Helium Steveville opens anonymous rocket
    0058 Royal Helium Steveville opens anonymous rocket
  • 0055 Smart Power Be Smart with your Power office
    0055 Smart Power Be Smart with your Power office
  • 0052 Predator Inspections
    0052 Predator Inspections
  • 0051 JML Hiring Pumpjack assembly
    0051 JML Hiring Pumpjack assembly
  • 0049 Scotsburn Dental soft guitar
    0049 Scotsburn Dental soft guitar
  • 0046 City of Estevan This is Estevan
    0046 City of Estevan This is Estevan
  • 0041 DEEP Since 2018 now we are going to build
    0041 DEEP Since 2018 now we are going to build
  • 0032 IWS Summer hiring rock trailer music
  • 0022 Grimes winter hiring
  • 0021 OSY Rentals S8 Promo
  • 0018 IWS Hiring Royal Summer
  • 0013 Panther Drilling PO ad 03 top drive rigs
  • 0011
  • 0006 JK Junior
  • 0002 gilliss casing services
    0002 gilliss casing services
  • 9002 Pipeline Online 30 sec EBEX
    9002 Pipeline Online 30 sec EBEX
  • 9001



Maurer explained that the first well they are working on currently goes just a few metres into the Duperow. But the Duperow typically has an average thickness of 150 metres in this area. They want to drill through the entire formation to test it much more comprehensively. Based on the wells drilled and re-completed last year, the company knows which high grade zones within the Duperow it wants to test in more detail for lithium concentration and brine productivity.

“This is a massive rock formation,” he noted.

Put into context, the much-ballyhooed Bakken formation is two to three metres thick around Stoughton.

The re-entry, recompletion and testing of this well is part of the company’s delineation strategy across their land base. The first well they drilled was close to the centre. The DEEP well was almost due south, and this next well is almost due north. The two wells near Oungre are almost due west, providing an east-west component to the delineation strategy.

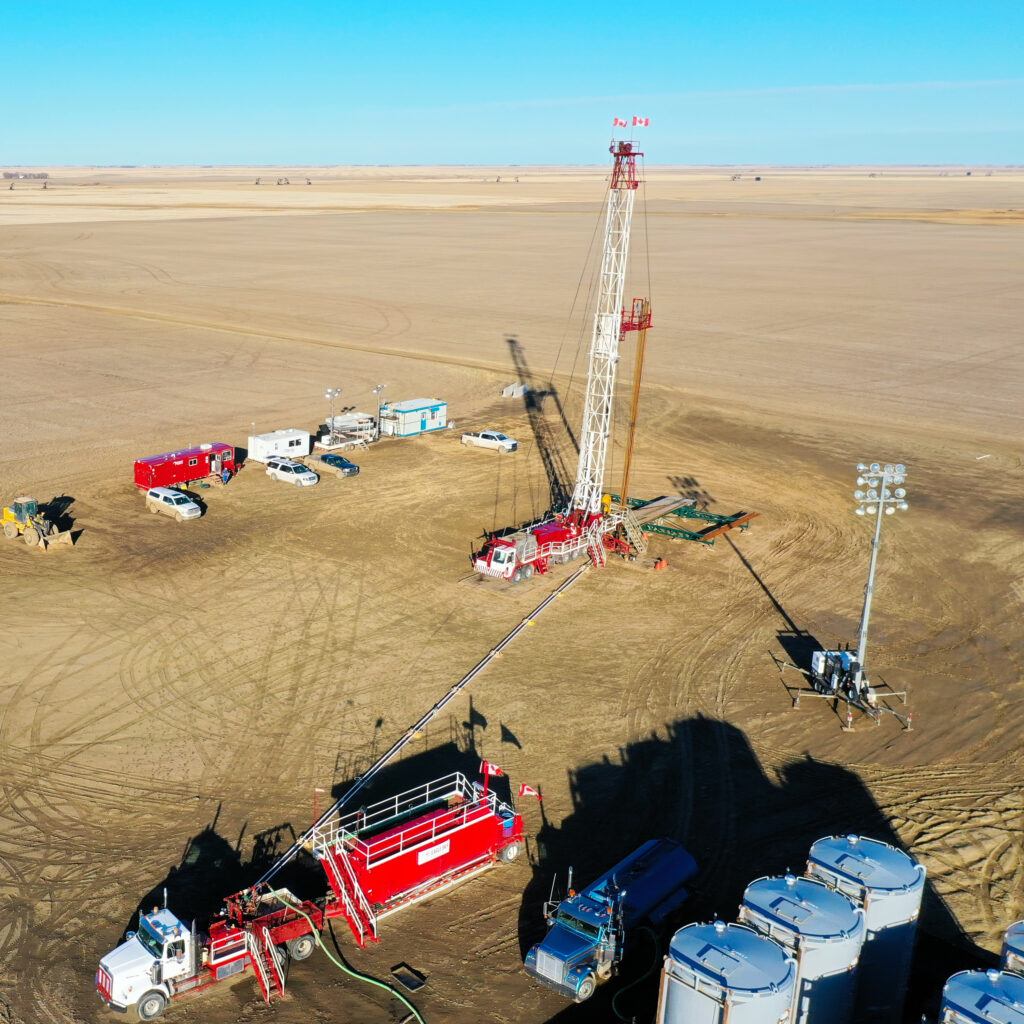

Eagle Sky Ventures was the service rig doing the swabbing work on Prairie Lithium’s second well on Oct. 27, 2021. The American border is just 200 metres or so south of this well, over the shoulder of the photo, so to speak. The well was originally drilled by Deep Earth Energy Production to delineate geothermal potential. Photo by Brian Zinchuk

Regarding the DEEP well, he said, “We did the re-entry into that geothermal well. The lithium results were really good, and consistently delineated with the well that we drilled at 14-33.

“Now the purpose of this re-entry program is to move north and confirm that north-south delineation. And then future plans would involve additional east-west delineation of the resource. And then that will start to give us a really good idea as to what the resource potential is in that area,” Maurer said.

This well is being completed to measure lithium concentrations across Prairie Lithium’s main target intervals within the Duperow formation and to understand the productivity across these intervals to ensure a sufficient volume of lithium-rich brine can be produced for long term development. The workover and flow testing are expected to be completed by Dec. 1, 2022.

Re-entries are not common in southeast Saskatchewan. Most oil companies prefer to start fresh with a brand-new wellbore than take a risk on an old wellbore that could have problems, such as a poor cement job. And Maurer explained they’re taking a similar approach.

“That’s why we drilled our first well as a brand new vertical well. So we drilled that first well, the vertical, to make sure that we understand the rock formation, and make sure that we knew what we were getting into. We were in control of everything associated with that well.

“These wells that we’re taking on, these last three, and the geothermal well we took on last year and re-entered, these aren’t intended to be production wells.

  • 0076 Latus only
    0076 Latus only
  • 0075 Fast Trucking OutlaW Buckers 01
    0075 Fast Trucking OutlaW Buckers 01
  • 0074 General Well Servicing Outlaw Buckers
    0074 General Well Servicing Outlaw Buckers
  • 0073 SaskWorks-Pipeline Online
    0073 SaskWorks-Pipeline Online
  • 0072 Outlaw Buckers and Oil Kings 2024
    0072 Outlaw Buckers and Oil Kings 2024
  • 0069 Sask Oil Show 2024 banquet tickets
    0069 Sask Oil Show 2024 banquet tickets
  • 0071 Pride Upkeep 2024 Packages
    0071 Pride Upkeep 2024 Packages
  • 0070 Sask Oil Show 2024 pre-register
    0070 Sask Oil Show 2024 pre-register
  • 0068 Sask Oil Show 2024 booth
    0068 Sask Oil Show 2024 booth
  • 0067 PFM SaskWorks Payroll Investment Plan
    0067 PFM SaskWorks Payroll Investment Plan
  • 0066 WBPC Promo video 30 seconds
    0066 WBPC Promo video 30 seconds
  • 0064 Estevan OTS
    0064 Estevan OTS
  • 0063 Turnbull Excavating hiring crusher
    0063 Turnbull Excavating hiring crusher
  • 0062 TED_EPAC_Technology_30
    0062 TED_EPAC_Technology_30
  • 0061 SIMSA 2024 For Sask Buy Sask
    0061 SIMSA 2024 For Sask Buy Sask
  • 0058 Royal Helium Steveville opens anonymous rocket
    0058 Royal Helium Steveville opens anonymous rocket
  • 0055 Smart Power Be Smart with your Power office
    0055 Smart Power Be Smart with your Power office
  • 0052 Predator Inspections
    0052 Predator Inspections
  • 0051 JML Hiring Pumpjack assembly
    0051 JML Hiring Pumpjack assembly
  • 0049 Scotsburn Dental soft guitar
    0049 Scotsburn Dental soft guitar
  • 0046 City of Estevan This is Estevan
    0046 City of Estevan This is Estevan
  • 0041 DEEP Since 2018 now we are going to build
    0041 DEEP Since 2018 now we are going to build
  • 0032 IWS Summer hiring rock trailer music
  • 0022 Grimes winter hiring
  • 0021 OSY Rentals S8 Promo
  • 0018 IWS Hiring Royal Summer
  • 0013 Panther Drilling PO ad 03 top drive rigs
  • 0011
  • 0006 JK Junior
  • 0002 gilliss casing services
    0002 gilliss casing services
  • 9002 Pipeline Online 30 sec EBEX
    9002 Pipeline Online 30 sec EBEX
  • 9001



“They’re really just exploration test holes, so they’re just providing us an access point to the Duperow formation. And then when we drill our production wells, those will be new drills.”

This strategy means a savings of around a million dollars per test well, with that $1 purchase price getting them to the top of the formation.

The exploration program will run the better part of a month, abandoning the original completion, bringing in the drilling rig to deepen the well, then doing new completions, installing an electric submersible pump and testing. It’s very similar to what took place on the company’s first well drilled last year.

Prairie Lithium is not doing any coring at this point, as Maurer said, “The additional cost and risk of acquiring core isn’t worth it for us right now, we are more interested in the fluids then the rock right now.”



  • 0076 Latus only
    0076 Latus only
  • 0075 Fast Trucking OutlaW Buckers 01
    0075 Fast Trucking OutlaW Buckers 01
  • 0074 General Well Servicing Outlaw Buckers
    0074 General Well Servicing Outlaw Buckers
  • 0073 SaskWorks-Pipeline Online
    0073 SaskWorks-Pipeline Online
  • 0072 Outlaw Buckers and Oil Kings 2024
    0072 Outlaw Buckers and Oil Kings 2024
  • 0069 Sask Oil Show 2024 banquet tickets
    0069 Sask Oil Show 2024 banquet tickets
  • 0071 Pride Upkeep 2024 Packages
    0071 Pride Upkeep 2024 Packages
  • 0070 Sask Oil Show 2024 pre-register
    0070 Sask Oil Show 2024 pre-register
  • 0068 Sask Oil Show 2024 booth
    0068 Sask Oil Show 2024 booth
  • 0067 PFM SaskWorks Payroll Investment Plan
    0067 PFM SaskWorks Payroll Investment Plan
  • 0066 WBPC Promo video 30 seconds
    0066 WBPC Promo video 30 seconds
  • 0064 Estevan OTS
    0064 Estevan OTS
  • 0063 Turnbull Excavating hiring crusher
    0063 Turnbull Excavating hiring crusher
  • 0062 TED_EPAC_Technology_30
    0062 TED_EPAC_Technology_30
  • 0061 SIMSA 2024 For Sask Buy Sask
    0061 SIMSA 2024 For Sask Buy Sask
  • 0058 Royal Helium Steveville opens anonymous rocket
    0058 Royal Helium Steveville opens anonymous rocket
  • 0055 Smart Power Be Smart with your Power office
    0055 Smart Power Be Smart with your Power office
  • 0052 Predator Inspections
    0052 Predator Inspections
  • 0051 JML Hiring Pumpjack assembly
    0051 JML Hiring Pumpjack assembly
  • 0049 Scotsburn Dental soft guitar
    0049 Scotsburn Dental soft guitar
  • 0046 City of Estevan This is Estevan
    0046 City of Estevan This is Estevan
  • 0041 DEEP Since 2018 now we are going to build
    0041 DEEP Since 2018 now we are going to build
  • 0032 IWS Summer hiring rock trailer music
  • 0022 Grimes winter hiring
  • 0021 OSY Rentals S8 Promo
  • 0018 IWS Hiring Royal Summer
  • 0013 Panther Drilling PO ad 03 top drive rigs
  • 0011
  • 0006 JK Junior
  • 0002 gilliss casing services
    0002 gilliss casing services
  • 9002 Pipeline Online 30 sec EBEX
    9002 Pipeline Online 30 sec EBEX
  • 9001



Royal Helium found high concentrations of lithium in its Climax-1 well

Lithium and geothermal presentations were standing room only at Williston Basin Petroleum Conference
