Multilateral designs lift more energy with a smaller environmental footprint

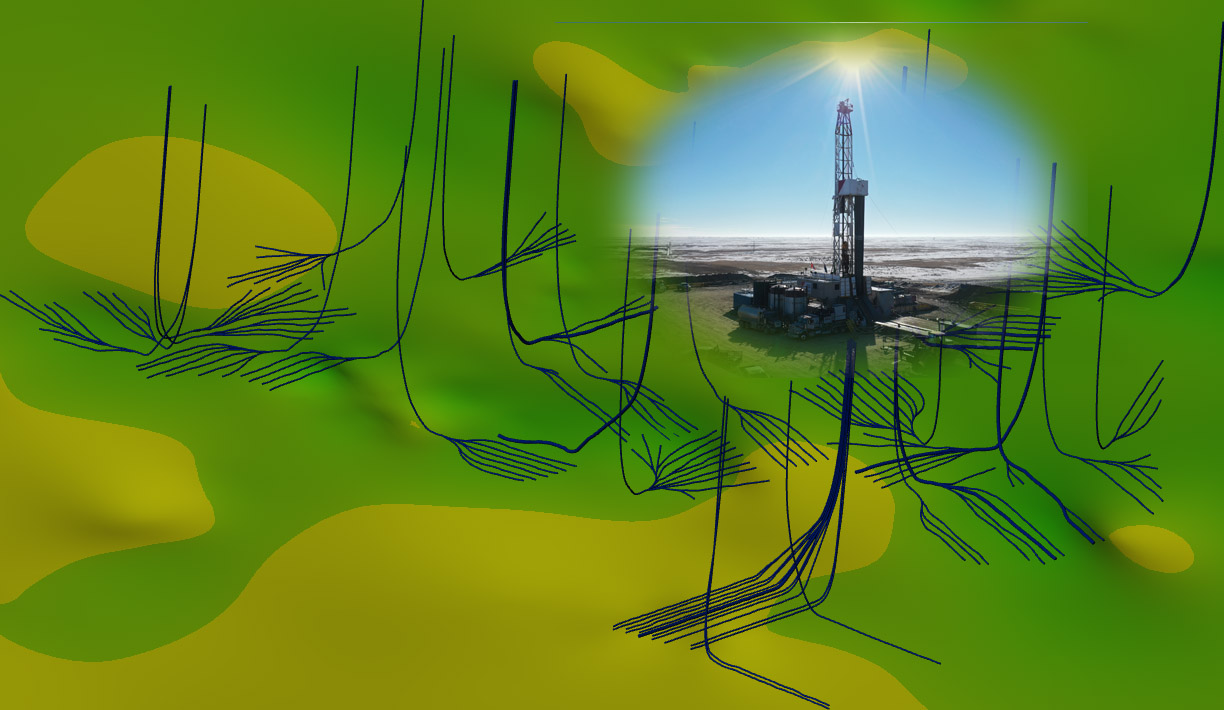

This is basically how multilateral wells look. While the drilling rig is not to scale, this is a representation of what they look like underground. This example is from northwest Saskatchewan near Waseca, courtesy Chinook Geosteering. Photo illustration by Brian Zinchuk

Editor’s note: This article by the Canadian Energy Centre has some of the best graphics Pipeline Online has seen yet, courtesy Chinook Geosteering, showing the different types of multilateral wells being drilled now. As Pipeline Online has written recently, multilaterals are the “next big thing.”

By Deborah Jaremko

A “weird and wonderful” drilling innovation in Alberta is helping producers tap more oil and gas at lower cost and with less environmental impact.

With names like fishbone, fan, comb-over and stingray, “multilateral” wells turn a single wellbore from the surface into multiple horizontal legs underground.

“They do look spectacular, and they are making quite a bit of money for small companies, so there’s a lot of interest from investors,” said Calin Dragoie, vice-president of geoscience with Calgary-based Chinook Consulting Services.

Dragoie, who has extensively studied the use of multilateral wells, said the technology takes horizontal drilling — which itself revolutionized oil and gas production — to the next level.

“It’s something that was not invented in Canada, but was perfected here. And it’s something that I think in the next few years will be exported as a technology to other parts of the world,” he said.

Dragoie’s research found that in 2015 less than 10 per cent of metres drilled in Western Canada came from multilateral wells. By last year, that share had climbed to nearly 60 per cent.

Royalty incentives in Alberta have accelerated the trend, and Saskatchewan has introduced similar policy.

Multilaterals first emerged alongside horizontal drilling in the late 1990s and early 2000s, Dragoie said. But today’s multilaterals are longer, more complex and more productive.

The main play is in Alberta’s Marten Hills region, where producers are using multilaterals to produce shallow heavy oil.

Today’s average multilateral has about 7.5 horizontal legs from a single surface location, up from four or six just a few years ago, Dragoie said.

One record-setting well in Alberta drilled by Tamarack Valley Energy in 2023 features 11 legs stretching two miles each, for a total subsurface reach of 33 kilometres — the longest well in Canada.

• 0104 SaskPower SASPO-2907 Hero Video_30sec
  0104 SaskPower SASPO-2907 Hero Video_30sec
• 0102 Lori Carr Coal Extended
  0102 Lori Carr Coal Extended
• 0101 VP Energy Road to adventure
  0101 VP Energy Road to adventure
• 0100 Turnbull Project Manager
  0100 Turnbull Project Manager
• 0099 Mryglod Steel 1080p
  0099 Mryglod Steel 1080p
• 0097 Eagle Sky Ventures LTD
  0097 Eagle Sky Ventures LTD
• 0095 Fast Trucking nearly 70 years good at it
  0095 Fast Trucking nearly 70 years good at it
• 0092 Turnbull projects big and small
  0092 Turnbull projects big and small
• 0046 City of Estevan This is Estevan Teaser
  0046 City of Estevan This is Estevan Teaser
• 0087 Lori Carr Coal Expansion
  0087 Lori Carr Coal Expansion
• 0077 Caprice Resources Stand Up For Free Speech
  0077 Caprice Resources Stand Up For Free Speech
• 0076 Latus only
  0076 Latus only
• 0061 SIMSA 2024 For Sask Buy Sask
  0061 SIMSA 2024 For Sask Buy Sask
• 0051 JML Hiring Pumpjack assembly
  0051 JML Hiring Pumpjack assembly
• 0049 Scotsburn Dental soft guitar
  0049 Scotsburn Dental soft guitar
• 0041 DEEP Since 2018 now we are going to build
  0041 DEEP Since 2018 now we are going to build
• 0032 IWS Summer hiring rock trailer music
• 0022 Grimes winter hiring
• 0021 OSY Rentals S8 Promo
• 0018 IWS Hiring Royal Summer
• 0013 Panther Drilling PO ad 03 top drive rigs
• 0002 gilliss casing services
  0002 gilliss casing services
• 9002 Pipeline Online 30 sec EBEX
  9002 Pipeline Online 30 sec EBEX
• 9001

By accessing large volumes of oil and gas from a single surface pad, multilaterals reduce land impact by a factor of five to ten compared to conventional wells, he said.

The designs save money by skipping casing strings and cement in each leg, and production is amplified as a result of increased reservoir contact.

Here are examples of multilateral well design. Images courtesy Chinook Consulting Services.

Parallel

Fishbone

Fan

Waffle

Stingray

Frankenwells
