One of the most important skills in the Oilpatch is finding your way to location. It sounds silly, but it is one-hundred percent true. Scratch that, it is THE most important skill. If you can’t find your way to the job, your chance of getting paid is zero. That is not how you want to be remembered. That guy who didn’t show up and didn’t get paid. Don’t be that guy.
Nowadays, there are several excellent location finder apps that you can use for free (or nearly free). OilTrails, Oiltrax, Fractracker, Wellsite Navigator are just a few. We use GFI Latitude to track our trucks and find the best way to locations in order to keep the rural municipalities happy. (They are not impressed when you drive a service rig package on a 5-ton road.) It is very easy to find a wellsite with this great technology. I use it a lot and they can be a great time-saver. (I have also become mentally lazy because of it too…)
I am one-hundred percent sure that everyone reading this (that works in the oilpatch) knows how to read a grid map. But just in case, I thought I would show a little “How-to” on using a lease number to find your way.
How to read a grid map
Write the directions down left to right. Example: 5-31-5-13 W2, which is just northwest of Goodwater.
Read the directions starting from right to left.
Example: 5-31-5-13-W2
W2 means west of the second meridian. In Saskatchewan the change from W1 to W2 is in a north/south line around Glen Ewen on the east side and changes from W2 to W3 near Assiniboia. Everything else that ends in W2 is between those two lines.
- 0067 PFM SaskWorks Payroll Investment Plan0067 PFM SaskWorks Payroll Investment Plan
- 0066 WBPC Promo video 30 seconds0066 WBPC Promo video 30 seconds
- 0065 Anova Resources field operator Oxbow0065 Anova Resources field operator Oxbow
- 0064 Estevan OTS0064 Estevan OTS
- 0063 Turnbull Excavating hiring crusher0063 Turnbull Excavating hiring crusher
- 0062 TED_EPAC_Technology_300062 TED_EPAC_Technology_30
- 0061 SIMSA 2024 For Sask Buy Sask0061 SIMSA 2024 For Sask Buy Sask
- 0060 Arizona Lithium Lease building0060 Arizona Lithium Lease building
- 0059 Southeast College Heavy Equipment Operator0059 Southeast College Heavy Equipment Operator
- 0058 Royal Helium Steveville opens anonymous rocket0058 Royal Helium Steveville opens anonymous rocket
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0015 Latus Viro0015 Latus Viro
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0002 gilliss casing services0002 gilliss casing services
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 9001
5-31-5-13-W2
The thirteen would mean the increments of six miles (9.6 kilometers for you young-uns) running east and west between the W2 (meridian) line and the W3 (meridian) line.
5-31-5-13-W2
The five would mean the increments of six miles running north and south starting at the US border and going north.
5-31-5-13-W2
The thirty-one represents the one mile by one mile section on the grid map.
5-31-5-13-W2
The five would represent the LSD (Legal Sub Division) within the one mile by one mile section on the grid map.
When finding where you have to go, you have to know where you are. Find a sign with the LSD markings on it then you will know where you are. (You can also use a grid road map of the province which is a big help.)
For example: If the location you are at is 5-31-5-13 W2 and the next location you are to go to the last number before the W2 is a 12, you would go east. If it is a 14 or higher the location would be west of your current location.
If the second last number is lower than 5 you would have to go south from your current location, and if it is higher than 5 you would go north of your current location.
Depending on the last 2 numbers you could also be going NE, NW, SE, or SW of your current location.
Whatever your second number is it will not be lower than 1 or higher than 36, with the 1 starting in the bottom right hand corner, and the 36 always ending in the top right corner.

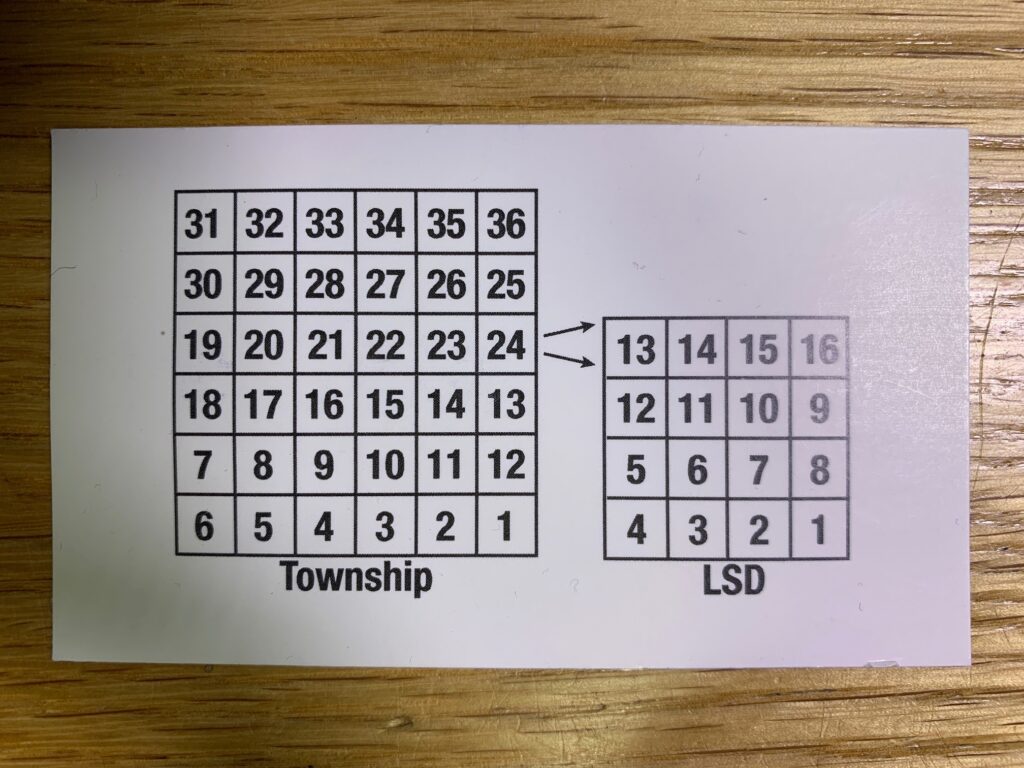

Here’s a handy example of a township and LSD grid, which many oilpatch companies conveniently print on the back of their business cards. They probably do that to keep their own salesmen from getting lost. Photo by Brian Zinchuk
