Brian Zinchuk is editor and owner of Pipeline Online

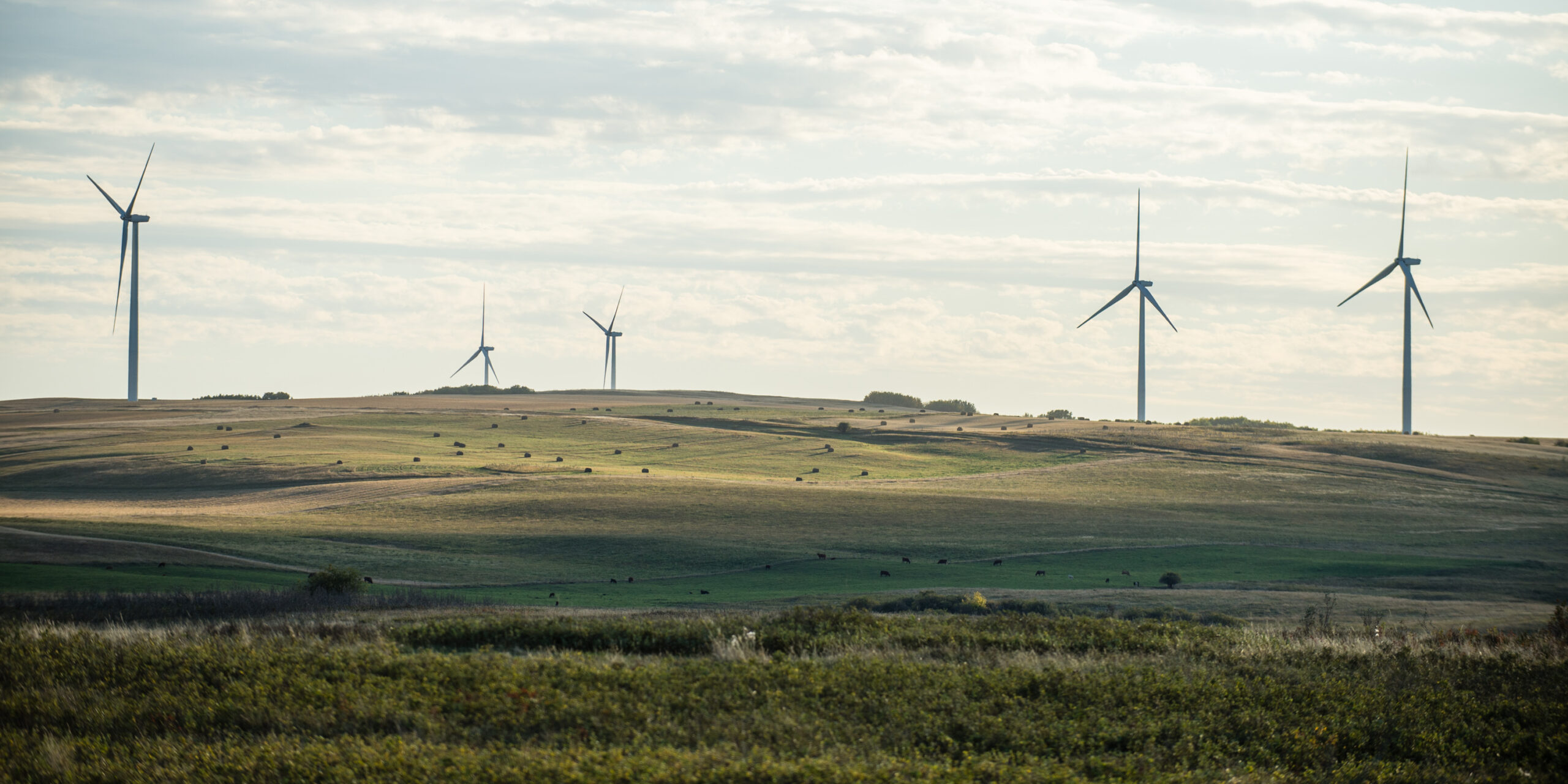

Wind turbines on the Alberta side of the Saskatcehwan/Alberta border, northwest of Macklin, Saskatchewan Photo by Brian Zinchuk
There must be something about Wednesdays, because another Wednesday resulted in another failure of Alberta’s wind power generation.
At 12:45 p.m. on Wednesday, Aug. 24, Alberta’s power grid was getting just 54 megawatts from its 28 wind farms with a cumulative nameplate capacity of 2,589 megawatts. That’s 2 per cent of its total rated capacity, and less than half the power output of SaskPower’s singular coal unit equipped with carbon capture and storage, Boundary Dam Unit 3. And that level of output remained persistent for at least the next two hours.
That’s according to the Alberta Electric System Operator, which posts minute-by-minute updates on the entire grid in that province. SaskPower keeps such information proprietary, and does not post such details publicly.

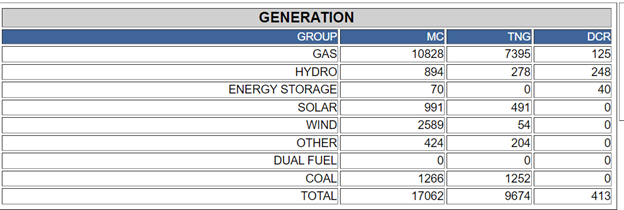

Total Alberta power generation at 12:45 p.m. on Aug. 24. MC is maximum capacity in megawatts, TNG is total net to grid, in megawatts, and DCR is dispatched and accepted contingency reserve. Alberta Electric System Operator
Of those 28 wind farms, 17 were generating precisely zero megawatts for grid consumption. Two of those are recent additions, Suncor’s Forty Mile Granlea (200 megawatts) and Wheatland Wind (120 megawatts), and may not be fully operational, but they are listed.

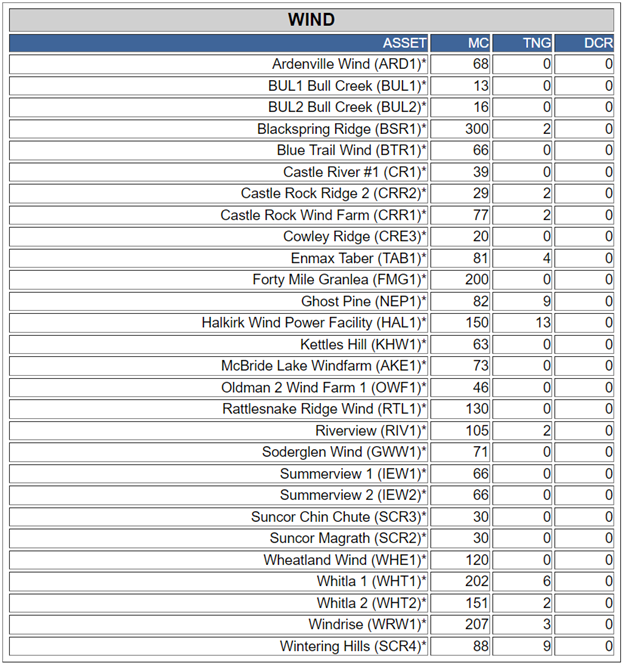

Total Alberta wind power generation at 12:45 p.m. on Aug. 24. Seventeen of the 28 wind farms were producing zero power to the grid. Alberta Electric System Operator
And yet again, Alberta’s now 70 megawatts of battery backup, meant to fill in during times of lower output from renewables was contributing zero power to the grid, despite the low wind conditions. In nine months of observations Pipeline Online has not once seen a single megawatt from the now four battery facilities contributed to the grid. The fourth, eReserve3 Mercer Hill, a 20 megawatt facility, was recently added.

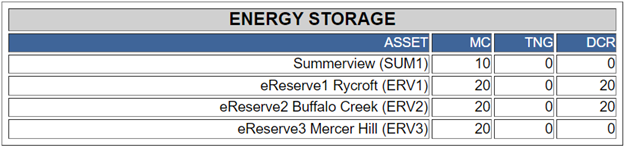

Total Alberta energy storage at 12:45 p.m. on Aug. 24. In nine months, Pipeline Online has not observed one megawatt drawn from this battery storage. Alberta Electric System Operator
- 9002 Pipeline Online 30 sec EBEX9002 Pipeline Online 30 sec EBEX
- 0056 OSY Rentals Hockey Draft 20230056 OSY Rentals Hockey Draft 2023
- 0055 Smart Power Be Smart with your Power office0055 Smart Power Be Smart with your Power office
- 0015 Latus Viro0015 Latus Viro
- 0054 SIMSA Energy Forum0054 SIMSA Energy Forum
- 0053 Kingston Midstream Westspur Alameda0053 Kingston Midstream Westspur Alameda
- 0052 Predator Inspections0052 Predator Inspections
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0043 ALX ten sizes0043 ALX ten sizes
- 0039 Summit ESP Saskatchewan lower third0039 Summit ESP Saskatchewan lower third
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0032 IWS Summer hiring rock trailer music
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0018 IWS Hiring Royal Summer
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0004 Royal Helium PO Ad 02
- 9001
- 0002
But what was filling in was power from its neighbours. In this graphic, negative values mean how many megawatts are being drawn into Alberta.

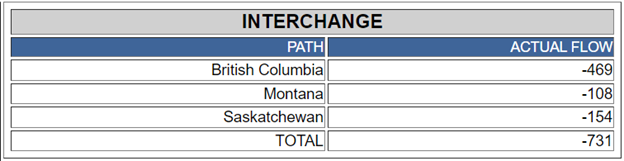

Total Alberta power interchange at 12:45 p.m. on Aug. 24. Alberta Electric System Operator
Alberta converted several of its coal plants to gas-fired steam. Here was their output:

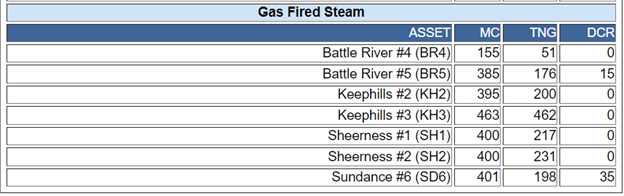

Total Alberta gas fired steam power generation at 12:45 p.m. on Aug. 24. Alberta Electric System Operator
And the last three coal units in the province were, as usual, running at max capacity.

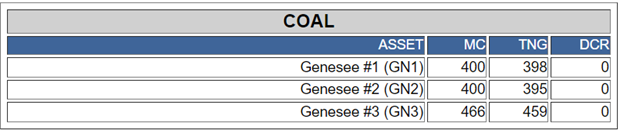

Total Alberta coal-fired power generation at 12:45 p.m. on Aug. 24. Alberta Electric System Operator
