Brian Zinchuk is editor and owner of Pipeline Online
While central Alberta was under heat warnings, baking in over 30 C temperatures, the province’s wind power generation was doing next to nothing to run the province’s air conditioners.

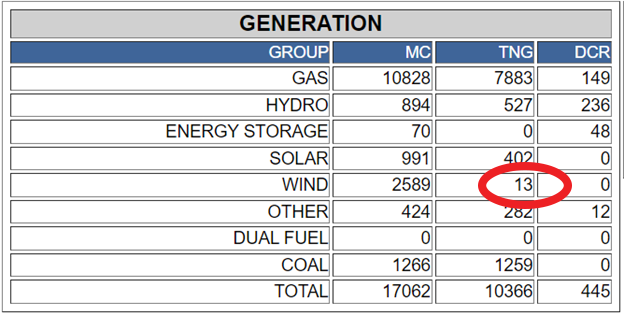

Alberta’s total power generation at 4:08 p.m. on Tuesday, Aug. 30. MC is maximum capacity in megawatts, TNG is total net to grid in megawatts, and DCR is dispatched (and accepted) contingency reserve, in megawatts. Alberta Electric System Operator
That’s because at 4:08 p.m. on Tuesday, Aug. 30, the province’s 28 wind farms were putting out just 0.5 per cent of their nameplate capacity, contributing 13 megawatts out of a maximum capacity of 2,589 megawatts.
That’s according to the Alberta Electric System Operator, which puts out minute-by-minute reports on the province’s power grid. You can see the results here at http://ets.aeso.ca/ets_web/ip/Market/Reports/CSDReportServlet .
SaskPower does not provide such data to the public, thus Alberta’s grid is the closest analog to what could be happening in Saskatchewan.
Of the 28 wind farms in Alberta, 21 reported zero power production, and four were reporting just one megawatt of power produced. This trend was consistent since at least 1 p.m., when there was a cumulative 52 megawatts province-wide. And by 5:25 p.m., when the supper usage peak hits, it wasn’t much better, at 35 megawatts.
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0050 Pride Upkeep lawn0050 Pride Upkeep lawn
- 0048 Hutts Trucking Safety0048 Hutts Trucking Safety
- 0047 Estevan Oilfield Technical Society 20230047 Estevan Oilfield Technical Society 2023
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0044 PTRC CCUS Aquistore0044 PTRC CCUS Aquistore
- 0043 ALX ten sizes0043 ALX ten sizes
- 0039 Summit ESP Saskatchewan lower third0039 Summit ESP Saskatchewan lower third
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0040 Southeast College safety tickets0040 Southeast College safety tickets
- 0032 IWS Summer hiring rock trailer music
- 0029 Latus Viro updated Latus phone
- 0025 Kendalls
- 0023 LC Trucking tractor picker hiring mix
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0019 Jerry Mainil Ltd hiring dugout
- 0018 IWS Hiring Royal Summer
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0004 Royal Helium PO Ad 02
- 9001
- 0002

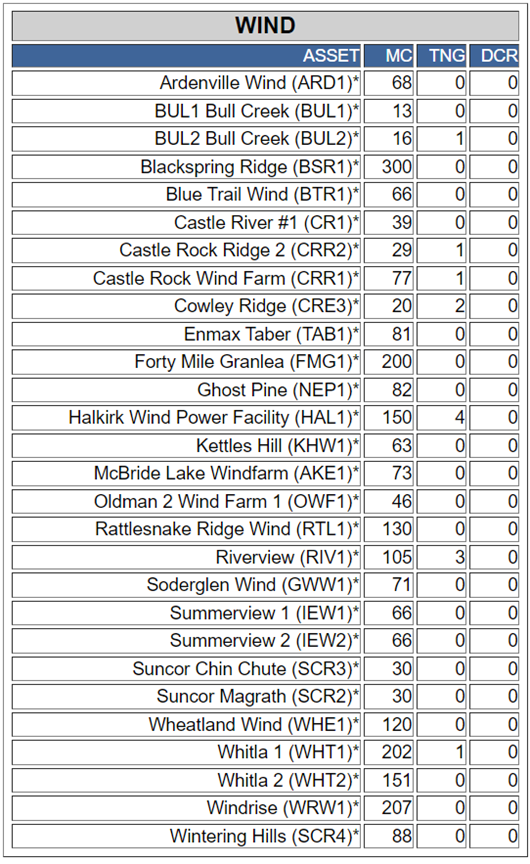

Alberta’s windpower generation at 4:08 p.m. on Tuesday, Aug. 30. Of 28 wind farms, only 7 were producing any power at all, and four of those were only producing one megawatt, the equivalent of 1360 horsepower. Alberta Electric System Operator
Two of them, Wheatland Wind’s 120 megawatt facility, and Suncor’s 200 megawatt Forty Mile Granlea, are recent additions to the list and do not appear to be producing power yet. But the other 19 typically do.
Nearly all of the 24 solar facilities in Alberta were putting out close to their maximum nameplate capacity. The exception was Travers, which is nearing completion. Its 465 megawatts is close to the total number of all the other facilities combined. While it occasionally shows up producing some power, at this point it was showing zero. Hull (25 megawatts) and Kisikaw-Pisim2 (7 megawatts) also showed zeros.
- 0051 JML Hiring Pumpjack assembly0051 JML Hiring Pumpjack assembly
- 0049 Scotsburn Dental soft guitar0049 Scotsburn Dental soft guitar
- 0050 Pride Upkeep lawn0050 Pride Upkeep lawn
- 0048 Hutts Trucking Safety0048 Hutts Trucking Safety
- 0047 Estevan Oilfield Technical Society 20230047 Estevan Oilfield Technical Society 2023
- 0046 City of Estevan This is Estevan0046 City of Estevan This is Estevan
- 0044 PTRC CCUS Aquistore0044 PTRC CCUS Aquistore
- 0043 ALX ten sizes0043 ALX ten sizes
- 0039 Summit ESP Saskatchewan lower third0039 Summit ESP Saskatchewan lower third
- 0041 DEEP Since 2018 now we are going to build0041 DEEP Since 2018 now we are going to build
- 0040 Southeast College safety tickets0040 Southeast College safety tickets
- 0032 IWS Summer hiring rock trailer music
- 0029 Latus Viro updated Latus phone
- 0025 Kendalls
- 0023 LC Trucking tractor picker hiring mix
- 0022 Grimes winter hiring
- 0021 OSY Rentals S8 Promo
- 0019 Jerry Mainil Ltd hiring dugout
- 0018 IWS Hiring Royal Summer
- 0013 Panther Drilling PO ad 03 top drive rigs
- 0011
- 0006 JK Junior
- 0004 Royal Helium PO Ad 02
- 9001
- 0002
While Alberta has four battery facilities, as usual, none reported supply power to the grid, despite wind producing next to zero power. In nine months of random observations, Pipeline Online has not yet observed those battery facilities supplying one megawatt to the grid. They did have 58 megawatts of dispatched (and accepted) contingency reserve.

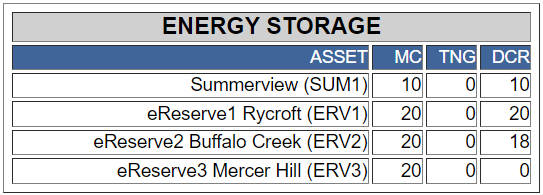

Alberta’s energy storage by batteries at 4:08 p.m. on Tuesday, Aug. 30. While there were 58 megawatts in reserve, none were being contributed to the grid, despite wind’s minimal performance. Alberta Electric System Operator
Heat warnings blanketed much of central Alberta, as seen from Environment Canada.
Heat warnings across central Alberta at 4:08 p.m. on Aug. 30. Environment Canada.
