Alberta wind power capacity drops to less than 1% yet again, grid alert issued

Brian Zinchuk

Brian Zinchuk is editor and owner of Pipeline Online

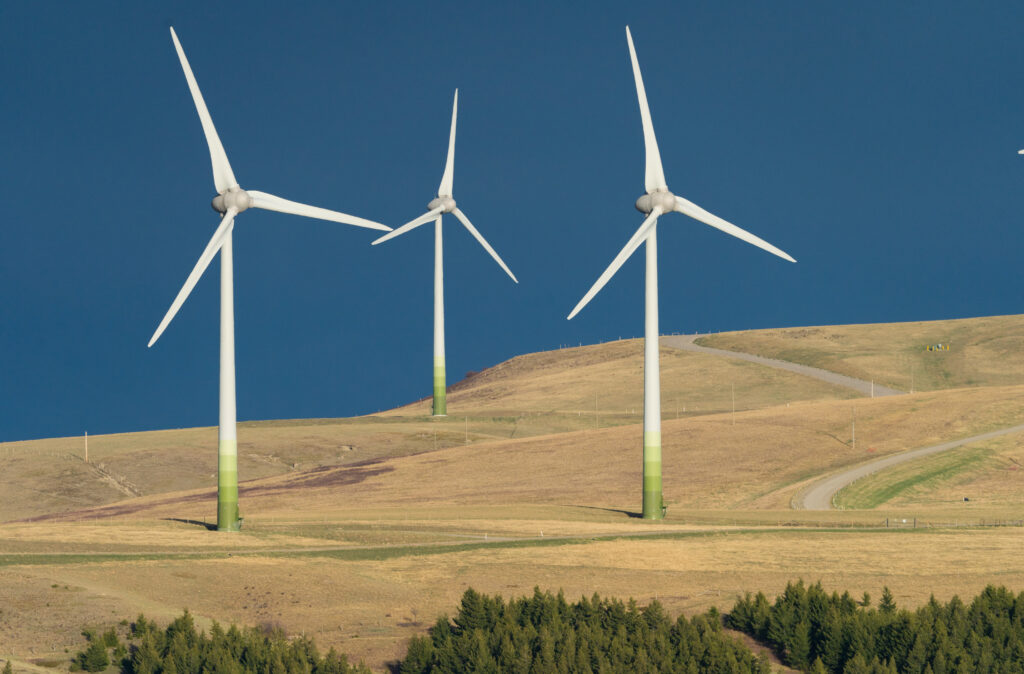

Alberta wind turbines. Photo by Clive Schaupmeyer

On Tuesday night, supper time in Alberta was not lit by wind power, according to numbers posted by the Alberta Electric System Operator.

That’s because at 6:18 pm., Alberta’s installed capacity of 3,466 megawatts of wind power generation was producing 24 megawatts. There are now 35 wind facilities attached to the grid, although about five of the most recent ones are not yet producing power, so the total actual capacity is closer to 3,000 megawatts. At that time, 24 of 35 wind farms were producing zero power to the grid. Even if five of those were recent additions, that still leaves 19 with no power generation at all.

And the result was a “grid alert” issued by the Alberta Electric System Operator, stating, “Due to cold weather, low wind conditions and generator derates/power reductions and an unplanned outage, the AESO declared a Grid Alert at 4:47 p.m. Find information on Grid Alerts here:”

An hour later, the alert was lifted.

Thus, the entire fleet of Alberta’s wind capacity was producing less than 1 per cent of nameplate capacity at suppertime on Nov. 29. And this happened after the sun went down over the Rockies, thus solar, as expected, was producing zero power at that moment.

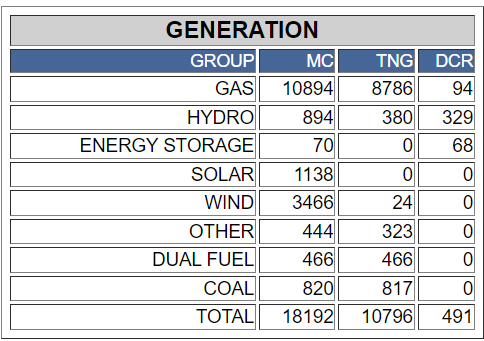

Power generation in Alberta as of 6:18 p.m. on Nov. 29. MC is maximum capacity, in megawatts, TNG is total net to grid, and DER is dispatched and accepted contingency reserve. Alberta Electric System Operator

But this supper hour, as wind capacity collapsed, three of Alberta’s four batteries were called into service. eReserve 1 Rycroft contributed 20 megawatts for 40 minutes, from 5:54-6:34. eReserve 2 Buffalo Creek provided 18 megawatts for the same period. And eReserve 3 Mercer Hill put out 20 megawatts from 5:57 to 6:35. The last time any one of those three batteries provided any power to the grid was over two weeks previous. (Note, it appears there is a one-hour time shift between AESO and Dispatcho.app reporting, perhaps due to daylight savings time)

• 0072 Outlaw Buckers and Oil Kings 2024
  0072 Outlaw Buckers and Oil Kings 2024
• 0069 Sask Oil Show 2024 banquet tickets
  0069 Sask Oil Show 2024 banquet tickets
• 0071 Pride Upkeep 2024 Packages
  0071 Pride Upkeep 2024 Packages
• 0070 Sask Oil Show 2024 pre-register
  0070 Sask Oil Show 2024 pre-register
• 0068 Sask Oil Show 2024 booth
  0068 Sask Oil Show 2024 booth
• 0067 PFM SaskWorks Payroll Investment Plan
  0067 PFM SaskWorks Payroll Investment Plan
• 0066 WBPC Promo video 30 seconds
  0066 WBPC Promo video 30 seconds
• 0065 Anova Resources field operator Oxbow
  0065 Anova Resources field operator Oxbow
• 0064 Estevan OTS
  0064 Estevan OTS
• 0063 Turnbull Excavating hiring crusher
  0063 Turnbull Excavating hiring crusher
• 0062 TED_EPAC_Technology_30
  0062 TED_EPAC_Technology_30
• 0061 SIMSA 2024 For Sask Buy Sask
  0061 SIMSA 2024 For Sask Buy Sask
• 0060 Arizona Lithium Lease building
  0060 Arizona Lithium Lease building
• 0059 Southeast College Heavy Equipment Operator
  0059 Southeast College Heavy Equipment Operator
• 0058 Royal Helium Steveville opens anonymous rocket
  0058 Royal Helium Steveville opens anonymous rocket
• 0055 Smart Power Be Smart with your Power office
  0055 Smart Power Be Smart with your Power office
• 0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
  0053 Kingston Midstream Westspur Alameda Click Before You Dig large text
• 0052 Predator Inspections
  0052 Predator Inspections
• 0051 JML Hiring Pumpjack assembly
  0051 JML Hiring Pumpjack assembly
• 0049 Scotsburn Dental soft guitar
  0049 Scotsburn Dental soft guitar
• 0046 City of Estevan This is Estevan
  0046 City of Estevan This is Estevan
• 0041 DEEP Since 2018 now we are going to build
  0041 DEEP Since 2018 now we are going to build
• 0032 IWS Summer hiring rock trailer music
• 0022 Grimes winter hiring
• 0021 OSY Rentals S8 Promo
• 0018 IWS Hiring Royal Summer
• 0015 Latus Viro
  0015 Latus Viro
• 0013 Panther Drilling PO ad 03 top drive rigs
• 0011
• 0006 JK Junior
• 0002 gilliss casing services
  0002 gilliss casing services
• 9002 Pipeline Online 30 sec EBEX
  9002 Pipeline Online 30 sec EBEX
• 9001

Genesee 3, a coal unit which has been converted to run as “dual fuel,” on coal or natural gas, was putting out 467 megawatts out of a capacity of 466. It was recently brought back on stream after several weeks being down for the conversion. The two remaining coal unites, Genesee 1 and 2, were running at full capacity.

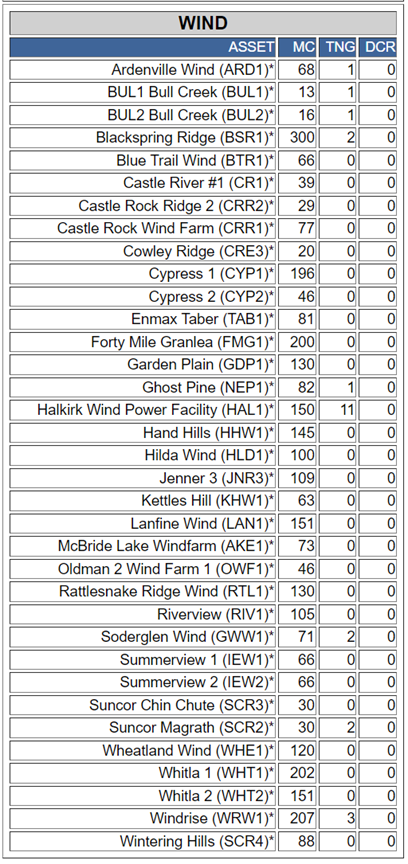

Wind power generation in Alberta as of 6:18 p.m. on Nov. 29. MC is maximum capacity, in megawatts, TNG is total net to grid, and DER is dispatched and accepted contingency reserve. Alberta Electric System Operator

Over here in Saskatchewan, SaskPower is on the path to build an additional 3,000 megawatts of wind and solar power capacity in the next several years. The most recent numbers available for Saskatchewan are from Nov. 27, when wind produced a daily average of 514 megawatts out of a nameplate capacity of 617 megawatts. That represented an average of 16 per cent of total power in Saskatchewan on that day, out of a total of 3,146 megawatts generated. Coal (28 per cent daily average power generated) was 868 megawatts (down from over 1,000 the day before) and natural gas (41 per cent) was 1,275 megawatts. Hydro was 347 megawatts, or 11 per cent, and solar was 3 megawatts, or negligible. “Other,” which includes small scale wind and solar, was 140 megawatts or 4 per cent.

However, as wind patterns in Alberta are usually closely replicated in Saskatchewan a day later, it remains to be seen what will be posted here in a few days. SaskPower delays its reporting by two days to preserve its competitive advantage trading in the electricity market.

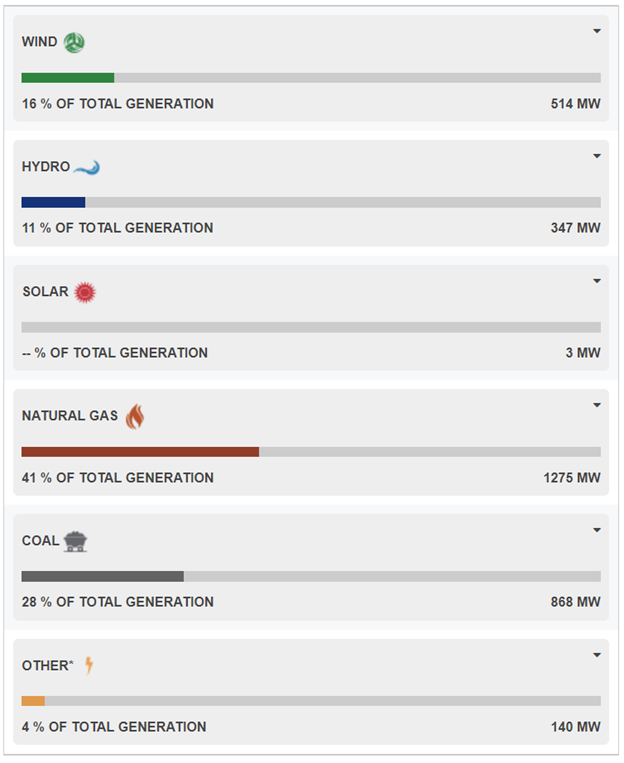

Power generation in Saskatchewan on Nov. 27. SaskPower
